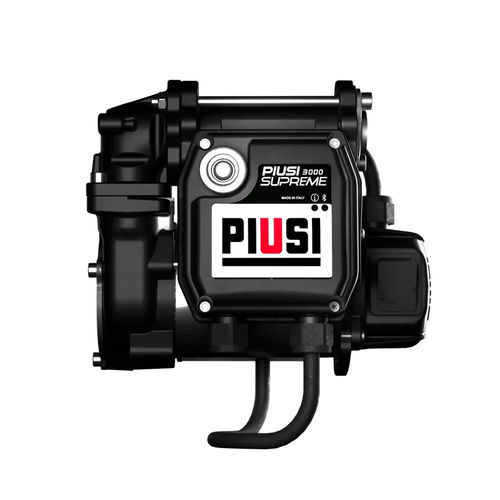

Vane pump PIUSI 3000 SUPREME

diesel fuelfor biodieselwith DC motor

Overview The PIUSI 3000 SUPREME is a smart DC vane diesel transfer pump delivering 50 l/min in continuous duty. Available in 12V and 24V versions, with ±0.5% accuracy and IP55 protection, it is designed for controlled dispensing from mobile and transportable tanks in agriculture, mining, construction and logistics applications.

Access and management Full control is provided via smartphone App (Bluetooth). Plug & play access is supported by i-Button; 10 i-Buttons are included. Standard configuration supports up to 20 drivers; for fleet-scale management the B.SMART option enables connected management of multiple devices and more than 20 users.

Installation Inlet and outlet use 3/4" threaded connections (replacing previous bayonet fittings) to enable faster, more versatile and plug & play installation on different mobile tanks. Horizontal and vertical port variants are available for adaptable mounting.

Upgrade and software Existing PIUSI 3000 SUPREME units (Standard or PRO) can receive new software features via a free App update; no technical intervention on the device is required to access implemented PRO functions.

Use cases Ideal for construction sites, off-road sectors, agriculture, mining, logistics and mobile refuelling operations where access control, dispensing traceability and operational flexibility are required.

Key functional points

• Smartphone App control via Bluetooth
• Plug & play i-Button access (10 keys included)
• Traceability of each dispensing (who, how much, when)
• Supports up to 20 drivers in standard configuration
• B.SMART option for fleet-level connected management

Spare parts and manuals (table) Product code | Description
F00250H00 | PIUSI 3000 SUPREME PUMP ONLY B.O.
F00250H0A | PIUSI 3000 SUPREME HORIZ. PORTS +10 KEYS
F00250V00 | PIUSI 3000 SUPREME PUMP ONLY B.V.
F00250V0A | PIUSI 3000 SUPREME VERT. PORTS +10 KEYS
F00250D00 | PIUSI 3000 SUPREME PUMP ONLY DRUM
F00250D0A | PIUSI 3000 SUPREME DRUM +FILTER +10 KEYS
F00250K00 | PIUSI 3000 SUPREME BASE BRACKET KIT
F00250D10 | PIUSI 3000 SUPREME 2" DIRECT MOUNT KIT
F00250A20 | PIUSI SUPREME STANDARD-PRO ADD-ON
F00250A00 | PIUSI SUPREME - B.SMART ADD-ON

Features

• Voltage: 12V to 24V*
• Bluetooth connection
• Total control via App
• Vibration resistant
• Low noise
• Compatible with diesel up to B20, HVO/XTL
• Max. pressure 1.5 bar
• Can also be used with i-Button
• 3/4" threaded inlet and outlet
• Protection rating IP55

Technical specifications

• Type: Vane pump
• Flow rate: 50 l/min (independent of supply voltage)
• Duty cycle: Continuous service
• Accuracy: ±0.5%
• Protection rating: IP55
• Maximum pressure: 1.5 bar
• Voltage: Between 12V and 24V*
• Note: The PIUSI 3000 SUPREME does not monitor the battery and does not provide battery protection
