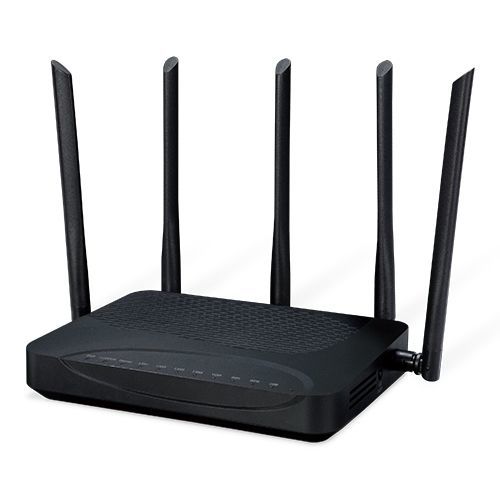

Wireless optical network unit XGPN-400AXV

industrialEthernetanalog

Delivering High-demanding Service Connectivity for ISP / Triple Play DevicesPLANET XGPN-400AXV is a high-performance XG-PON Wi-Fi ONU (Optical Network Unit) designed to deliver ultra-fast broadband connectivity for residential and office users. Equipped with one 10Gbps downstream and 2.5Gbps upstream XG-PON port, four Gigabit Ethernet LAN ports, one RJ11 VoIP port, and advanced Wi-Fi 6 technology, it provides the ideal solution for ultra-high-speed fiber broadband applications. Paired with an XGS-PON Optical Line Terminal (OLT), the XGPN-400AXV offers a highly-efficient and reliable FTTH solution.XG-PON 10Gbps downstream and 2.5Gbps upstream speeds, ensuring ultra-fast broadband connectivity4 Gigabit Ethernet LAN ports, delivering stable wired connections for desktops, NAS, and media devices1 RJ11 FXS VoIP port for high-quality voice communicationDual-band Wi-Fi 6 (802.11b/g/n/ac/ax), providing up to 3000Mbps wireless performance with 5 external antennasSupports up to 20km transmission distance, perfect for fiber-to-the-home applicationsSeamless compatibility with XGS-PON OLTs ensures a flexible and scalable deploymentPerfectly Designed for Fiber to the Home ApplicationsPLANET XGPN-400AXV is perfectly designed for fiber-to-the-home (FTTH) applications, delivering 10Gbps downstream and 2.5Gbps upstream speeds over a single optical fiber. With a maximum transmission distance of 20 kilometers and support for a 1:256 split ratio, the XGPN-400AXV ensures cost-effective large-scale fiber deployments. Built-in QoS features, including 8 priority queues, WRR, SP, and FIFO scheduling, guarantee smooth bandwidth allocation for IPTV, online gaming, VoIP, and cloud services.Integrated VoIP Port for Triple-Play ServicesThe XGPN-400AXV features a built-in RJ11 FXS port, enabling voice-over-IP (VoIP) service for residential and small business users. With support for standard voice codecs such as G.711 and G.729, the device allows users to connect an analog telephone directly, providing high-quality voice communication over the fiber network. This makes the XGPN-400AXV ideal for triple-play deployments, combining internet, voice, and video services into a single, unified solution.High-speed Wi-Fi 6 802.11ax WirelessPLANET XGPN-400AXV features the latest Wi-Fi 6 technology, supporting dual-band 2.4GHz and 5GHz frequencies with speeds up to 574Mbps (2.4GHz) and 2402Mbps (5GHz). Compliant with 802.11b/g/n/ac/ax standards, it delivers enhanced wireless performance with 5 external antennas, ensuring excellent coverage and stable connections for bandwidth-intensive applications such as 4K streaming, cloud gaming, and smart home devices.Gigabit LAN Throughput Boosts Network TrafficPLANET XGPN-400AXV provides four Gigabit Ethernet LAN ports, ensuring stable and high-speed wired connectivity for desktops, NAS, media players, and gaming consoles. Combined with Wi-Fi 6, it fully eliminates transmission bottlenecks, delivering both ultra-fast wired and wireless speeds for modern home and office environments.IPv6/IPv4 Dual Stack CapabilityWith full support for IPv4 and IPv6 dual stack, the XGPN-400AXV seamlessly integrates into both current IPv4 networks and future IPv6 infrastructures. This ensures future-proof compatibility, enabling ISPs to smoothly deploy next-generation IPv6 FTTx services while maintaining backward compatibility with existing IPv4 networks.1 SC/UPC type XG-PON portUp to 2.5Gbps upstream and 10Gbps downstreamMaximum data transmission of up to 20km128-bit triple DES (3DES) encryption algorithmLED indicators for link status802.1Q VLAN, and QoS for virtual LAN tagging and traffic prioritizationBroadcast storm protection to prevent and limit broadcast trafficBandwidth control to manage and allocate network bandwidthIGMP snooping/proxy for efficient multicast traffic managementIPv4 and IPv6 protocols supportedUp to 3000Mbps bandwidthCompatible with 802.11ax Wi-Fi 6Backward compatible with 802.11b/g/n/acCompatible to equipment working on 2.4GHz and 5GHzIEEE 802.3x flow control for full-duplex communicationQueue scheduling algorithms including WRR, Strict Priority, and FIFOIGMP snooping v1/v2/v3IGMP proxy functionFirewall with MAC/IP/Port/URL/Domain filteringDDoS attack protectionFour 10/100/1000Mbps Gigabit Ethernet ports5 Wi-Fi 6 external antennasDynamic Bandwidth Allocation (DBA) supportIEEE 802.3x flow controlWR, SP, and FIFO queue scheduling algorithms for traffic managementPort-based VLAN and IEEE 802.1Q VLANFirewall like MAC/IP/Port/URL/Domain filteringDDoS protection to safeguard against distributed denial-of-service attacksLoop detection to prevent network loopsDying-gasp mechanism for graceful device shutdownType B dual-homing protectionWeb, TELNET, TR-069, OMCI, and OAM remote managementFirmware upgrade via TFTP, Web, TR-069, and OLTTechnical Specifications:UNI port: 4 x 10/100/1000BASE-T RJ45 copper, Wi-Fi 6 external 5 antennas, 1 USB, 1 x RJ11 FXS portPON port: Downlink 10Gbps and uplink 2.5Gbps, 20km coverage, SC/UPC interfaceButtons: Power ON/OFF, Reset, WLAN enable/disable, WPS enable/disable, LED on/offFanless designLED Indicators: PWR, LOS/PON, Internet, LAN1-LAN4, Wi-Fi, WPS, USB, VoIPInstallation: Desktop or wall mountingPower: 12V DC, 1.5A max, 7.32W max consumptionWeight: 494gEnclosure: PlasticWi-Fi: 802.11b/g/n/ac/ax, MIMO, max 3000Mbps, multiple SSIDs and encryptionDimensions: 185 x 135 x 36mm (excluding antennas)Heat dissipation: 24h operation without performance degradationWireless: IEEE 802.11ax 2.4GHz/5GHz, backward compatible, up to 574Mbps (2.4GHz), 2402Mbps (5GHz)Encryption: 64/128-bit WEP, WPA, WPA2-PSK, WPA3-SAEWireless Security: SSID broadcast enable/disable, MAC filtering, WPS, client isolationAdvanced: Transmit power adjustment, beacon interval, WMM, band steering, Wi-Fi scheduleMax clients: 128 wireless clientsRouter: Routing/bridging/hybrid, DNS relay, DHCP server, VLAN, multicast, QoS, reliability, security, managementVoIP: T.38 (G.711 Fax pass-through), G.711A/U, G.723, G.729 codecs, VADStandards: ITU-T G.987.3, G.988, G.989, GB/T 39577-2020, IEEE 802.1QOperating: 0~50°C, 5~95% RH; Storage: -10~60°C, 5~95% RH
