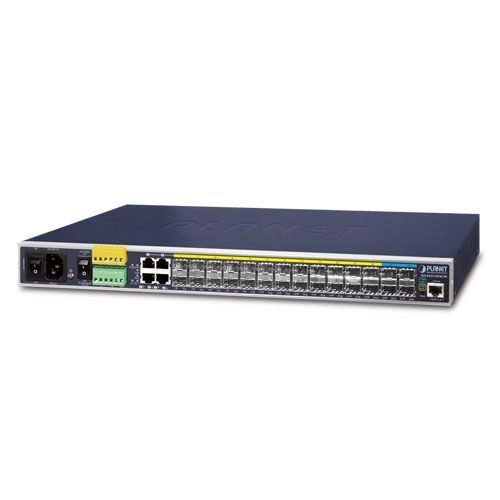

Managed ethernet switch IGS-6325-20S4C4X

32 portslayer 2layer 3

10Gbps Fiber Ports and Multiple Dual Speed Fiber Ports Deliver High-speed NetworkingPLANET IGS-6325-20S4C4X Industrial Layer 3 Managed Switch features 14 100/1000Mbps SFP ports, 4 shared TP ports, 10 100/1000/2500Mbps SFP ports, 4 10G SFP+ ports and Layer 3 IP routing in a 1U case. With 10Gbps uplink, the IGS-6325-20S4C4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGS-6325-20S4C4X is capable of providing non-blocking switch fabric and wire-speed throughput as high as 158Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore, it adopts user-friendly “Front Access” design for easy wiring and maintenance of the IGS-6325-20S4C4X when placed in the cabinet.Layer 3 Routing SupportThe IGS-6325-20S4C4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.Cybersecurity Network Solution to Minimize Security RisksThe cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the IGS-6325-20S4C4X is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, the IGS-6325-20S4C4X offers an easy-to-use, platform independent management and configuration facility. The IGS-6325-20S4C4X supports SNMP and it can be managed via any management software based on the standard SNMP protocol. For reducing product learning time, the IGS-6325-20S4C4X offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the IGS-6325-20S4C4X offers remote secure management by supporting SSHv2, TLSv1.2 and SNMP v3 connection which can encrypt the packet content at each session.Modbus TCP Provides Flexible Network Connectivity for Factory AutomationWith the supported Modbus TCP/IP protocol, the IGS-6325-20S4C4X can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.1588 Time Protocol for Industrial Computing NetworksThe IGS-6325-20S4C4X is ideal for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.AC and DC Redundant Power to Ensure Continuous OperationThe IGS-6325-20S4C4X possesses a 100~240V AC power supply and dual 24~60V DC power supply utilized as redundant power supply to ensure its continuous operation. Its redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. Furthermore, with the 24~60V DC power supply implemented, the IGS-6325-20S4C4X can be applied as the telecom level device and placed in almost any difficult environment.Digital Input and Digital Output for External AlarmThe IGS-6325-20S4C4X helps the network administrators efficiently manage the unexpected network situations by providing Digital Input and Digital Output for external alarm device on the front panel. The Digital Input can be used to detect and log the status of the external devices such as door intrusion detector. The Digital Output could be used to send alarm whenever the IGS-6325-20S4C4X has port link-down or power failure.Effective Alarm Alert for Better ProtectionThe IGS-6325-20S4C4X supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time to find where the problem is. It will help to save time and human resource.Redundant Ring, Fast Recovery for Critical Network ApplicationsThe IGS-6325-20S4C4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.IPv6/IPv4 Dual StackSupporting both IPv6 and IPv4 protocols, the IGS-6325-20S4C4X helps data centers, campuses, telecoms, and more to experience the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.Robust Layer 2 FeaturesThe IGS-6325-20S4C4X can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. Via the link aggregation of supporting ports, the IGS-6325-20S4C4X allows the operation of a high-speed trunk to combine with multiple fiber ports and supports fail-over as well.Powerful SecurityThe IGS-6325-20S4C4X offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user, and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The IGS-6325-20S4C4X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.Excellent Traffic ControlThe IGS-6325-20S4C4X is loaded with powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limit that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers’ applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.Flexible and Extendable 10Gb Ethernet Solution10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the IGS-6325-20S4C4X supports triple speed and 10GBASE-SR/LR, 2500BASE-X or 1000BASE-SX/LX. With its 4-port, 10G Ethernet link capability and additional 4-port 1G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-6325-20S4C4X provides broad bandwidth and powerful processing capacity.Intelligent SFP Diagnosis MechanismThe IGS-6325-20S4C4X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.Key Features14 100/1000BASE-X SFP slots10 100/1000/2500BASE-X SFP slots4 10/100/1000BASE-T RJ45 ports, shared with Port-1 to Port-44 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFPRJ45 to RS232 console interface for basic management and setupHardware ConformanceOne 100 to 240V AC or dual 24 to 60V DC power input, redundant power with reverse polarity protectionActive-active redundant power failure protectionBackup of catastrophic power failure on one supplyFault tolerance and resilience19-inch rack-mountable designIP30 metal caseSupports EFT 6000V DC protection and 6000V DC Ethernet ESD protection-40 to 75 degrees C operating temperature for DC power input-10 to 60 degrees C operating temperature for AC power inputDigital Input & Digital Output2 Digital Input (DI)2 Digital Output (DO)Integrates sensors into auto alarm systemTransfers alarm to IP network via email and SNMP trapLayer 3 IP Routing FeaturesSupports maximum 128 static routes and route summarizationIP dynamic routing protocol supports OSPFv2Routing interface provides per VLAN routing modeLayer 2 FeaturesHigh performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidthStorm control supportBroadcast/Multicast/Unknown unicastSupports VLANIEEE 802.1Q tagged VLANUp to 4K VLANs groups, out of 4096 VLAN IDsProvides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)Private VLAN Edge (PVE)Protocol-based VLANMAC-based VLANIP subnet-based VLANGVRPSupports Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLANBPDU GuardSupports Link Aggregation802.3ad Link Aggregation Control Protocol (LACP)Cisco ether-channel (static trunk)Maximum 14 trunk groups, with 16 ports for each trunkUp to 80Gbps bandwidth (full duplex mode)Provides port mirror (many-to-1)Port mirroring monitors the incoming or outgoing traffic on a particular portLoop protection to avoid broadcast loopsSupports ERPS (Ethernet Ring Protection Switching)Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devicesIEEE 1588 and Synchronous Ethernet network timingQuality of ServiceIngress shaper and egress rate limit per port bandwidth control8 priority queues on all switch portsTraffic classificationIEEE 802.1p CoSToS/DSCP/IP Precedence of IPv4/IPv6 packetsIP TCP/UDP port numberTypical network applicationStrict priority and Weighted Round Robin (WRR) CoS policiesTraffic policing on the switch portDSCP remarkingVoice VLANMulticastSupports IPv4 IGMP snooping v1, v2 and v3Supports IPv6 MLD snooping v1 and v2Querier mode supportIPv4 IGMP snooping port filteringIPv6 MLD snooping port filteringMVR (Multicast VLAN Registration)SecurityAuthenticationIEEE 802.1x port-based/MAC-based network access authenticationIEEE 802.1x authentication with guest VLANBuilt-in RADIUS client to cooperate with the RADIUS serversRADIUS/TACACS+ users access authenticationAccess Control ListIP-based Access Control List (ACL)MAC-based Access Control List (ACL)Source MAC/IP address bindingDHCP Snooping to filter distrusted DHCP messagesDynamic ARP Inspection discards ARP packets with invalid MAC address to IP address bindingIP Source Guard prevents IP spoofing attacksIP address access management to prevent unauthorized intruderManagementIPv4 and IPv6 dual stack managementSwitch Management InterfacesConsole/Telnet command line interfaceWeb switch managementSNMP v1, v2c, and v3 switch managementSSHv2 and TLSv1.2 secure accessSNMP ManagementFour RMON groups (history, statistics, alarms, and events)SNMP trap for interface Link Up and Link Down notificationIPv6 address/NTP managementBuilt-in Trivial File Transfer Protocol (TFTP) clientBOOTP and DHCP for IP address assignmentSystem MaintenanceFirmware upload/download via HTTP/TFTPReset button for system reboot or reset to factory defaultDual imagesDHCP relay and option 82DHCP ServerUser privilege levels controlNTP (Network Time Protocol)Link Layer Discovery Protocol (LLDP) and LLDP-MEDNetwork diagnosticSFP-DDM (Digital Diagnostic Monitor)Cable diagnostic technology provides the mechanism to detect and report potential cabling issuesICMPv6/ICMPv4 remote pingSMTP/Syslog remote alarmSystem LogPLANET NMS System and Smart Discovery Utility for deployment managementSpecificationsDimensions (W x D x H): 444 x 200 x 44.2 mm, 1U heightWeight: 2.935kgPower Consumption: AC input: Max. 38.3 watts/131.4 BTU; DC input: Max. 41.4 watts/142 BTUPower Requirements – AC: AC 100~240V, 50/60Hz 1APower Requirements – DC: DC 24~60V, 2.25AOperating Temperature: -10 ~ 60°C for AC power input; -40 ~ 75°C for DC power inputStorage Temperature: -40 ~ 80°CRelative Humidity: 5 ~ 95% (non-condensing)
