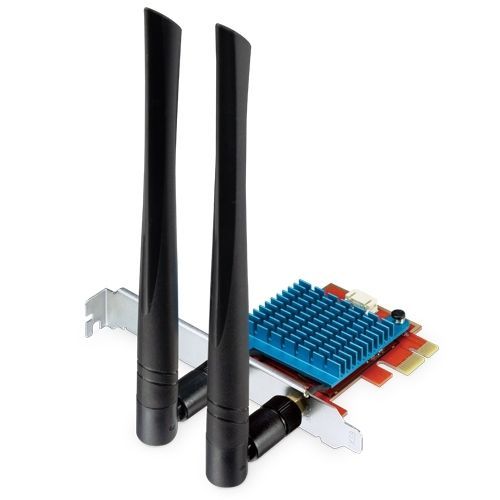

USB adapter WTL-5800BE

wirelessPCI interfaceprofile

Upgrade Desktops to Fast, Low-Latency Wi-Fi 7PLANET WTL-5800BE is a tri-band 802.11be/EHT Wi-Fi 7 PCI Express x1 wireless adapter powered by the Intel® BE200NGW chipset. It brings next-generation connectivity to desktop PCs with 2×2 MIMO and OFDMA for high efficiency and lower latency. The adapter supports speeds up to 574 Mbps (2.4 GHz), 2400 Mbps (5 GHz) and 5800 Mbps (6 GHz), opening the new 6 GHz band for cleaner spectrum and reduced interference in dense environments.With Bluetooth® 5.4 (via onboard USB interface), users can connect keyboards, mice, headsets and other peripherals without a separate dongle, simplifying the workspace.Designed for easy deployment in business and home offices, WTL-5800BE includes two external 5 dBi antennas to enhance signal coverage. It operates seamlessly on Windows® 10, Windows® 11 and Linux® making it an ideal upgrade for high-bandwidth applications such as 4K/8K streaming, cloud collaboration, AR/VR trials and online gaming.Hassle-free Installation for Tri-Band Wi-FiWTL-5800BE uses a standard PCI Express x1 interface for Wi-Fi data and an internal USB connection for Bluetooth functionality. Once installed, your desktop gains simultaneous access to 2.4, 5 and 6 GHz bands under the Wi-Fi 7 standard, maximizing spectrum choices and minimizing contention with legacy devices.Wi-Fi 7 Technology HighlightsThe WTL-5800BE brings the latest Wi-Fi 7 (IEEE 802.11be/EHT) to desktops with 2×2 MIMO, OFDMA, MU-MIMO, BSS Coloring, 4096-QAM, Multi-RU, and MLO (Multi-Link Operation). It supports channel widths up to 320 MHz on 6 GHz and 160 MHz on 5 GHz with WPA3-SAE security. It delivers up to 574 Mbps (2.4 GHz), 2400 Mbps (5 GHz), and 5800 Mbps (6 GHz), helping reduce interference and latency in high-density environments.Multiple OS SupportThe WTL-5800BE works seamlessly with Windows® 11 64-bit (2.4, 5 and 6 GHz) and Windows® 10 64-bit (2.4, 5 and 6 GHz).It is also compatible with Linux distributions using the iwlwifi driver (kernel 6.16+); 6 GHz availability depends on regulatory domain and distro enablement. Bluetooth® 5.4 is supported via the onboard USB interface.Low-Profile designThe adapter supports both full-height and low-profile PCI Express slots, making it easy to deploy in compact desktops and IPCs.Package includes: full-height bracket and low-profile bracket for flexible installation.Wi-Fi 7 Desktop AdaptersPLANET WTL-5800BE upgrades desktops and IPCs to next-generation Wi-Fi 7, providing tri-band 2.4, 5 and 6 GHz connectivity and Bluetooth® 5.4 for everyday collaboration. Leveraging the cleaner 6 GHz spectrum and 2×2 EHT, it enables multi-gigabit wireless (up to 5800 Mbps PHY on 6 GHz) with lower interference for video conferencing, cloud apps, 4K/8K media and large-file sync in high-density offices and classrooms. Two external 5 dBi antennas and the included low-profile bracket make installation flexible in compact business PCs and industrial chassis, and it also serves as a convenient 6 GHz client for validating Wi-Fi 7 AP performance (availability depends on region/AP/OS).Intel® BE200NGW Wi‑Fi 7 2×2 chipset for performance and reliabilityTri-band 2.4, 5 and 6 GHz 802.11be/EHT with OFDMA and MU-MIMO for higher efficiencyThroughput: up to 574 Mbps (2.4 GHz); up to 2400 Mbps (5 GHz); up to 5800 Mbps (6 GHz).PCI Express x1 interface for Wi-Fi data; USB interface for Bluetooth functionBluetooth® 5.4 for seamless connection to headsets, keyboards, mice, etc.Two 5 dBi external antennas to enhance signal coverage and stabilitySecurity-ready with modern Wi-Fi encryption (802.11be/EHT standard compliant)Operating temperature 0–55 °C for daily office and SOHO environmentsWindows® 10, Windows® 11 and Linux® driver support for quick integrationHardware SpecificationsControllerIntel® BE200NGWInterfacePCI Express x1 (Wi-Fi), USB (Bluetooth)Antenna2 × external 5 dBiDimensions (W x D x H)71.5 × 58 × 1.6 mmWeight55gPower SupplyPCI Express bus-powered (3.3V)USB 5V (internal header) for Bluetooth functionNo external power connector requiredPower ConsumptionMax. 0.36 watts / 1.23 BTU/h (Power on without any connection; Wi-Fi only, 3.3 V@110 mA)Max. 0.69 watts / 2.35 BTU/h (Full loading; Wi-Fi only, 3.3 V@210 mA)WirelessStandardIEEE 802.11ax, 802.11ac, 802.11n, 802.11b, 802.11g and 802.11aBands2.4 GHz: 2400–2483.5 MHz5 GHz: 5150–5850 MHz6 GHz: 5925–7125 MHzRegion-dependent; actual channels and EIRP follow local regulations.Data Rate2.4 GHz up to 574 Mbps; 5 GHz up to 2400 Mbps; 6 GHz up to 5800 MbpsMIMO2×2 spatial streamsBluetoothVersionBluetooth 5.4 (via USB interface)Advanced FunctionsOperating System SupportWindows® 10 64-bitWindows® 11 64-bitLinux® Kernel 6.16+Standards ConformanceStandards ComplianceIEEE 802.11be/EHT; backward compatible with 802.11ax/ac/a/b/g/n and amendments (a,b,d,e,g,h,i,k,n,r,u,v,w)Bluetooth® 5.4 (via internal USB)PCI Express® x1 (Wi-Fi) and USB (Bluetooth)Regulatory ComplianceFCC Part 15 Class B, CEEnvironmentOperating Temperature0 ~ 55 degrees CStorage Temperature-10 ~ 70 degrees COperating Humidity5 ~ 90%, relative humidity, non-condensingStorage Humidity5 ~ 90%, relative humidity, non-condensingStandard AccessoriesPackage Contents1 × WTL-5800BE Wi-Fi 7 PCIe x1 adapter (full-height bracket pre-installed)1 × Low-profile bracket2 × External 5 dBi antennas1 × Bluetooth® USB header cable (9-pin)1 × QR code sheet
