QAM access point IAP-3600BE

IPLANWAN

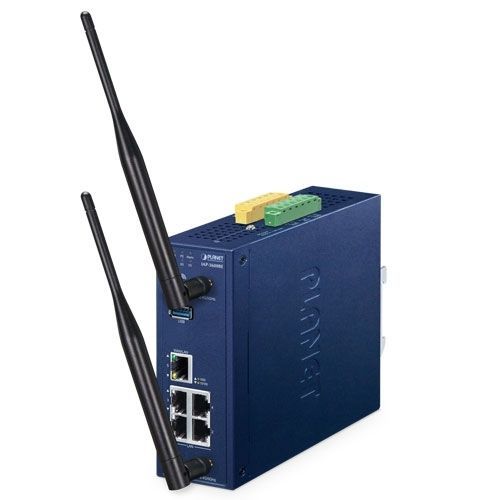

Ultra-high-speed Wi-Fi 7 Wireless LAN Solution with Environmentally Hardened DesignPLANET IAP-3600BE Industrial Dual Band 802.11be Wireless Access Point with 5 10/100/1000T LAN Ports features a rugged IP30-rated metal enclosure, ensuring robust performance in harsh industrial environments. Integrated with Wi-Fi 7 (802.11be) technology, the IAP-3600BE delivers exceptional wireless speeds of up to 2882Mbps on the 5GHz band and 688Mbps on the 2.4GHz band.It supports advanced wireless capabilities including 4096-QAM, Multi-Link Operation (MLO), MU-MIMO, MU-OFDMA, and beamforming, enabling lower latency, greater bandwidth efficiency, and highly stable multi-user connections. Supporting up to 256 concurrent client devices, the IAP-3600BE is the ideal wireless solution for mission-critical industrial applications requiring ultra-fast, reliable, and secure connectivity.Designed to operate in extreme environments, the IAP-3600BE supports a wide temperature range from -40 to 70°C, making it ideal for deployment in harsh and demanding conditions. It also features flexible installation options with both DIN rail and wall-mount support, maximizing space efficiency within industrial cabinets.High-Performance Dual Band Wi-Fi 7 SolutionThe IAP-3600BE, compliant with the latest IEEE 802.11be Wi-Fi 7 standard, delivers ultra-high-speed and low-latency wireless connectivity. It supports maximum data rates of up to 688Mbps on the 2.4GHz band (40MHz) and 2882Mbps on the 5GHz band (160MHz), enabling lightning-fast transmission across both frequency bands. With dual-band concurrent operation, users benefit from improved bandwidth, reduced congestion, and more stable connections in high-density environments.Boost Network Throughput with 4096 QAMWith 4096 QAM encoding, the IAP-3600BE transmits more data per signal, increasing throughput and making it ideal for high bandwidth applications such as 4K/8K video streaming, AR/VR experiences, and real time cloud services while maintaining a stable and efficient network connection.Seamless Connectivity and Peak Network PerformanceDesigned for robust dual‑band operation, the IAP-3600BE ensures seamless connectivity across both 2.4 GHz and 5 GHz frequencies. This design guarantees consistent data transfer and stable connections even in interference‑prone, high‑density scenarios, delivering the reliability demanded by modern commercial applications.Optimize Spectrum UtilizationEmploying advanced techniques such as dynamic allocation of resource units and spectrum puncturing, the IAP-3600BE minimizes spectrum waste and maximizes efficiency in densely‑populated wireless environments, further enhancing overall network performance and business productivity.Business-Oriented Wi-Fi 7 Performance in Industrial EnvironmentsThe IAP-3600BE is purpose-built for enterprise and industrial applications, prioritizing network stability, high performance, and environmental durability. Supporting the latest Wi-Fi 7 (802.11be) standard, it delivers impressive wireless speeds of up to 2882Mbps on the 5GHz band and 688Mbps on the 2.4GHz band, providing nearly 2.4 times the throughput of Wi-Fi 6 in real-world scenarios.Ultra-low Latency and Jitter for Real-time Industrial ApplicationsEquipped with advanced Quality of Service (eQoS) and enhanced channel access mechanisms, the IAP-3600BE intelligently prioritizes latency-sensitive data traffic, minimizing delay and jitter. This ensures consistent, real-time performance for mission-critical applications such as remote machine control, industrial AR/VR, video surveillance, and low-latency communication in automation systems.Precision Interference Control for Seamless Industrial ConnectivityThe IAP-3600BE incorporates BSS Coloring technology to intelligently differentiate overlapping basic service sets (BSS), effectively minimizing co-channel interference and maintaining stable wireless connections in high-density environments. Additionally, beamforming enhances signal strength and coverage by directing Wi-Fi signals toward active client devices, ensuring consistent performance throughout industrial deployment zones.Advanced Wireless Security for Industrial NetworksThe IAP-3600BE supports advanced wireless encryption standards including WPA3-PSK, WPA2-PSK, and WPA/WPA2-Enterprise, providing strong data protection and preventing unauthorized network access. For enhanced access control, administrators can configure predefined Access Control Lists (ACLs), making it a reliable and secure solution for sensitive industrial and enterprise applications.Flexible Deployment Modes and Centralized ManagementThe IAP-3600BE supports multiple operation modes—including Access Point, Gateway, Repeater, and WISP—to flexibly adapt to a wide range of industrial and enterprise deployment scenarios, whether establishing a new infrastructure or upgrading an existing one. With intuitive remote management via the PLANET CloudViewerPro app and centralized NMS, it streamlines installation, monitoring, and ongoing maintenance across distributed networks.Built-in Cybersecurity Features for Industrial Network ProtectionThe IAP-3600BE supports TLS v1.3 for secure remote access and encrypted management traffic, ensuring strong protection against modern cyber threats. It also includes enterprise-grade security features such as SNMPv3 with authentication and encryption, Access Control Lists (ACLs), WPA3 encryption, and 802.1X authentication, forming a comprehensive defense against unauthorized access and data breaches.Dual Power Input for High Availability Network SystemThe IAP-3600BE features a strong dual power input system with wide-ranging voltages (9V~54V DC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IAP-3600BE via power supply 2 alternatively without any loss of operation.Effective Alarm Alert for Better ProtectionThe IAP-3600BE supports a Fault Alarm feature which can alert the users when there is something wrong with the device. With this ideal feature, the users would not have to waste time finding where the issue is. It will help to save time and human resource.Digital Input and Digital Output for External AlarmThe IAP-3600BE supports Digital Input and Digital Output on its upper panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IAP-3600BE port shows link down, link up or power failure.Flexible and Easy Installation with Limited SpaceThe compact-sized IAP-3600BE is specially designed to be installed in a narrow environment, such as a wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.Key Features4 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X (Port 1 to Port 4)1 x 10/100/1000BASE-T RJ45 WAN/LAN port, auto-negotiation, auto MDI/MDI-X (Port 5)2 x dual-band (2.4GHz/5GHz) RP-SMA connectors with antennas1 USB 3.0 port for system configuration backup/upload and firmware upgrade1 x reset button for system factory default and rebootLAN PortHardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-XFeatures Store-and-Forward mode with wire-speed filtering and forwarding ratesIEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation10K jumbo frameAutomatic address learning and address agingIndustrial Case and InstallationIP30 metal case protectionDIN rail or wall-mount designDC 9-54V, redundant power with reverse polarity protection-40 to 70 degrees C operating temperatureDigital Input and Digital Output2 Digital Input (DI)2 Digital Output (DO)Integrate sensors into auto alarm systemMultiple Operation Modes OptionsMultiple operation modes: AP/Repeater mode, WISP mode and Gateway mode optionsIndustrial-Grade Wireless LAN ComplianceSupports Wi-Fi 7 (IEEE 802.11be), the latest generation of wireless networking technologyBackward compatible with 2.4GHz (802.11b/g/n/ax/be), 5GHz (802.11a/n/ac/ax/be) frequency bandsRF Interface Characteristics802.11be 2T2R architecture with data rates up to 3600Mbps (688Mbps in 2.4GHz and 2882Mbps in 5GHz)High output power with multi-level adjustable transmit power controlSecure Wireless Connection FeaturesFull encryption supported: WPA3 Personal, WPA2/WPA3 Personal, WPA2 Personal (AES), WPA2 Personal (TKIP), WPA2 Personal (TKIP+AES), WPA/WPA2 Personal (AES), WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES), WPA2 Enterprise, WPA/WPA2 EnterpriseMAC-based Access Control Lists (ACL) for enhanced device-level securityWireless AP Mode FeaturesSupports OFDMA (orthogonal frequency division multiple access)Supports MU-MIMO (multi-user multiple-input multiple-output), Beamforming and BSS ColoringWMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wirelessCoverage threshold to limit the weak signal of clients occupying sessionReal-time Wi-Fi channel analysis chart and client limit control for better performanceTerminal Seamless Roaming with 802.11k, 802.11v, and 802.11rNEW: Supports Wi-Fi 7 enhancements, including:4096-QAM for higher data ratesMulti-Link Operation (MLO) for simultaneous multi-band transmissionGateway Mode FeaturesBuilt-in RADIUS server/ClientCaptive PortalUPnPIP routing protocol supports RIPv1/v2, OSPFPLANET DDNS/Easy DDNSSPI firewall, DDoS block, system security and NAT ALGsMAC address/IP/Web filtering and QoSDMZ and port forwardingEasy Deployment and ManagementSupports PLANET AP Controllers in AP modeSelf-healing mechanism through system auto reboot settingSystem status monitoring through remote syslog serverPLANET Smart Discovery Utility for deployment managementPLANET NMS system and CloudViewer for deployment managementSpecificationsInterfaces: 5 10/100/1000BASE-T RJ45 Ethernet ports (4 LAN, 1 WAN/LAN)Wireless Connector: Built-in two RP-SMA female connectorsUSB Port: 1 USB 3.0 portDI & DO Interfaces: 2 Digital Input (DI), 2 Digital Output (DO)Connector: Removable 6-pin terminal block for power inputReset Button: < 5 sec: System reboot; > 10 sec: Factory defaultEnclosure: IP30 metal caseDimensions: 50 x 135 x 135 mmWeight: 881gPower Requirements: 9~54V DC, 1.8APower Consumption: Max. 6.48W (No Loading at DC 54V), Max. 11.88W (Full loading at DC 54V)Installation: DIN-rail, desktop, wall-mountingLED Indicators: System (P1, P2, Alarm, I/O), Ethernet Interfaces (1000 LNK/ACT, 10/100 LNK/ACT), Wi-Fi (2.4GHz, 5GHz)Wi-Fi Standard: IEEE 802.11a/n/an/ac/ax/be 5GHz (2Tx2R), IEEE 802.11g/b/n/ax/be 2.4GHz (2Tx2R)Band Mode: 2.4GHz & 5GHz concurrent modeData Modulation: 802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM)Antenna: 4 dBi 2.4GHz and 5GHz dual-band external antennas with RP-SMA male connectorsFrequency Range: 2.4GHz (America FCC: 2.412~2.462GHz, Europe ETSI: 2.412GHz~2.472GHz), 5GHz (America FCC: 5.180~5.240GHz, 5.745~5.825GHz, Europe ETSI: 5.180~5.700GHz)Channel Width: 20MHz, 40MHz, 80MHz, 160MHzData Transmission Rates: Transmit/Receive: 688 Mbps for 2.4 GHz and 2882 Mbps for 5 GHzEncryption Security: WPA3 Personal, WPA2/WPA3 Personal, WPA2 Personal (AES), WPA2 Personal (TKIP), WPA2 Personal (TKIP+AES), WPA/WPA2 Personal (AES), WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES), WPA2 Enterprise, WPA/WPA2 EnterpriseMax. SSID: 8 (4 per radio)Max. Wireless Clients: Up to 256 clients (128 is suggested, depending on usage)Operating Temperature: -40 ~ 70°CStorage Temperature: -40 ~ 75°CRelative humidity: 5 ~ 90% (non-condensing)Regulatory Compliance: FCC Part 15 Class A, CE
