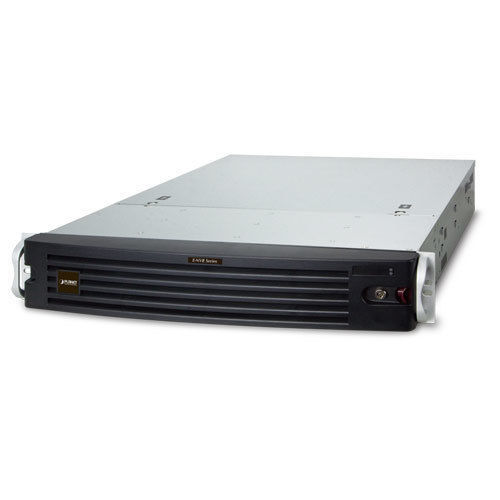

Video recorder NVR-E6480

motionnetworkvideo surveillance

High Level Surveillance SolutionPLANET NVR-E6480, a high-definition IP surveillance solution, is designed to work with PLANET E-series cameras or ONVIF cameras for traffic surveillance, public and other security monitoring applications. The NVR-E6480 is the Windows-embedded 64-channel NVR that can connect up to 64 IP cameras and supports 8 hard disks. The unit employs RAID 0/1 to optimize the process of securing data easily and quickly.The NVR-E6480 features Gigabit Ethernet ports, eMap, video motion detection, automatic camera registration, and mobile apps for smart phone and tablet connectivity. The NVR-E6480, capable of recording 300Mbps of video bandwidth, supports a wide range of resolutions in H.264, MPEG-4 and M-JPEG formats. In addition, the NVR is able to work with extended software such as ALPR (Automatic License Plate Recognition) and IVS (Intelligent Video Surveillance). Through these value-added applications, the NVR is definitely a necessity to keep track of those critical moments saved as evidences when in need.Instant PlaybackOn the Live View page of the NVR-E6480’s management interface, whenever you want to look back to check suspicious events of a camera channel you just missed, just hit the ‘Instant Playback’ button to bring up the window to review recent feeds. While you don’t have to switch to the Playback page to do so, you can still have full live views of other channels simultaneously.Dual Stream ManagementThe NVR provides dual stream management in live view and recording functions. User is able to monitor or record stream 1 or stream 2 of dual stream devices. This design is able to reduce the CPU and memory loading of the NVR that handles a large number of channels.Location Management with eMapThe eMap function helps visualize the layout of IP cameras in the surveillance network enabling you to quickly identify the location of each IP camera, especially when an alarm occurs. Just upload the pictures of the monitoring locations and drag and drop the IP camera icons to the right place on the eMap. Once an alarm event happens, the camera icons will flash to indicate the event type for you to be alerted immediately and take necessary actions.Remote Access via Mobile App, Web Browser or CMSThe NVR-E6480 provides central surveillance management capability with the adoption of its bundled Central Management Software (CMS). With the CMS, the NVR system is expandable for multi-sites management of up to 64 surveillance channels simultaneously. Besides, users are able to monitor the NVR via mobile app viewer or the Web browser anytime, anywhere.Large Storage CapacityThe NVR-E6480 is suitable for various network environments. Besides applications in retail stores and SMBs, the NVR-E6480 offers 8 SATA HDDs supporting RAID 0/1 function and is able to be applied in large scale surveillance facilities, such as banks, enterprises, transportations, campuses, etc.Perfect for Indoor Surveillance ApplicationsPLANET NVR-E6480 is a rack server optimized for reliable high-definition surveillance. The NVR is preloaded with all necessary software and preconfigured to minimize installation time. It is then completed with PLANET E-series cameras and extended software to formally begin surveillance. With dual Ethernet ports, ONVIF standard, CMS management, eMap and high storage capacity features, the NVR-E6480 is especially perfect for indoor surveillance in such places as department stores, factories, communities, enterprises, transportations, campus, etc.Key FeaturesWindows-embedded standalone NVR2U rack-mount designDual Gigabit Ethernet portsE-SATA, VGA and USB interface supportedAudio line-in, line-out and mic-in jacksSimultaneous recording and live video streamingSupports M-JPEG, MPEG-4 and H.264 compressions64-channel IP camera inputVideo resolution up to 10 mega-pixel2-way audio supportManual, event or scheduled recording of 64 IP cameras simultaneouslySupports recording frame rate up to 1920fpsInstant playback in live viewSupports 8 SATA hard disks (RAID 0/1) for storage, up to 6TB per HDDExports recorded video file in AVI or RAW format2 x RJ45, 10/100/1000BASE-TIPv4, IPv6, TCP/IP, UDP, HTTP, DHCP, RTP, RTSP, DNS, NTP (SNTP), ICMP, ARP, SMTP, FTP, UPnP, LDAP, ONVIFONVIF compliant for interoperabilitySupports multiple languagesDual stream managementLocation-based management with eMapUp to max. 64 channels with the central management softwareSupports USB keyboard and mouseRemote access via mobile app viewer and Web browserCam Viewer E-series software supported – CV7-VA, CV7-LP*The NVR-E6480 supports 1-ch ONVIF only for the third-party camera. Users must purchase an additional license for expanding ONVIF channels.SpecificationsCPU: Intel ProcessorRAM: 2GBOperating System: Windows 7 Standard EmbeddedEthernet: 2 x RJ45, 10/100/1000BASE-TUSB Interface: 6 x USB 2.0 for backup device and firmware upgradeVideo Interface: VGA video interfaceAudio Interface: Mic-in, line-in and line-outStorage Device: 8 x 3.5" SATA II hard disk connectors; up to 6TB per HDDExternal Storage Interface: 1 x eSATALED: PowerButton: PowerMax. Channels: 64-channel IP camerasFunction: Manual, auto or ONVIF searchCompression: H.264, MPEG-4, M-JPEGResolution: 10MP, 5MP, 4MP, 3MP, 2MP, 1.3MP, 1MP, VGAMax. Live Video Frame Rate (Local Display): 6fps@10MP (1-ch), 15fps@5MP (1-ch), 8fps@4MP (1-ch), 15fps@3MP (1-ch), 30fps@2MP (1-ch), [email protected] (1-ch), 30fps@1MP (1-ch), 30fps@VGA (1-ch)Audio Type: 2-wayDisplay Layout Mode: Local: 1, 4, 5, 6, 8, 9, 10, 12, 16; Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64Digital Zoom: Zoom in/out digitally by PiP (Picture-in-Picture)Manual Recording/ Snapshot: Instant recording upon mouse click/Instant snapshot upon mouse click or hot keyDual Stream Management: Live view of stream 1 or stream 2 of dual stream devicesEvent Panel: Displays event status upon alarm or upon connection loss or recoveryInstant Playback: Instant playback in live view windowE-map: Area maps with camera icons and small live view windows hyperlinksVideo Search: Time/Event basedPlayback Control: Continuous forward and backward playback with speeds 1x, 2x, 4x, 8x or frame-by-frame; pause; stopManual Snapshot: Instant snapshot from playback upon mouse clickDigital Zoom: Zoom in/out digitally by PiP (Picture-in-Picture)Synchronized Playback: Up to 9 channels for local display; up to 64 channels for remote clientVideo Export: Export video clips in AVI or RAW formatRecording Throughput: Maximum total bitrate 300MbpsSchedule Recording: Record video with user defined scheduleEvent Recording: Record video when the alarm event is triggered, including the pre-event buffered video clipFrame Rate Setting: Different recording frame rate settings for non-event and triggered eventManual Recording: Instant recording upon mouse clickDual Stream Management: Recording of stream 1 or stream 2 of dual stream devicesRecording Frame Rate: Max. 1920fps in total; max. 30fps per cameraMax. Local Display Resolution: 1920 x 1200Network Service: IPv4, IPv6, TCP/IP, UDP, HTTP, DHCP, RTP, RTSP, DNS, NTP (SNTP), ICMP, ARP, SMTP, FTP, UPnP, LDAP, ONVIFEvent Type: Video motion detection, passive IR sensor, external device through digital input, video loss and recovery, network loss and recovery, server loss and recovery, disk full, disk not foundEvent Action: Record video, pop-up window with live video, switch to hotspot window, play beep sound, activate external device through digital output, upload snapshot to FTP server, execute system command to activate other programs, eMail notification with snapshots, command a PTZ device to go to a preset pointManual Event: Manually activate external devices through digital output via live view monitorScheduler: Define the schedule of event managerMax. Number of Clients: 1 local, 3 remotePrivileges: Live, Playback, Setup, GlobalUser Interface: Graphic local user interface (Operated by mouse, keyboard), Web browser (Internet Explorer 7 or above), CMS utility, App viewerMultiple Languages Support: Arabic, Czech, Danish, German, Estonian, English, Spanish, Finnish, French, Hebrew, Hungarian, Indonesian, Italian, Japanese, Netherland, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese, Simplified Chinese, Traditional ChineseLog Type: User Operation, Setup Device, Setup System, Setup Users, Setup Schedule, Setup Event, System Status, Request LogPower: 100-240V AC, 4-2A, 50-60HzConsumption: 200WOperating Temperature: 0~40 degrees CHumidity: 10~85% RHWeight: 11.4 kg (with 1 system HDD and front cover)Dimensions (W x D x H): 482 x 560 x 88 mm
