Ultrasonic cleaning machine
waterautomaticfor coating

ultrasonic cleaning machine
ultrasonic cleaning machine
ultrasonic cleaning machine
ultrasonic cleaning machine
Add to favorites
Compare this product

Characteristics

Technology
water, ultrasonic
Operational mode
automatic
Applications
process, industrial, for surface treatment, metal machining, mold, for metal parts, for injection molding, for coating, for large parts, for additive manufacturing
Other characteristics
continuous, stainless steel, multipurpose, compact, high-performance, high-pressure, vacuum, environmentally friendly, with rinsing, custom, high-speed, very high-efficiency, high-capacity, single-chamber, low-noise, with dryer, with digital display, small-size

Description

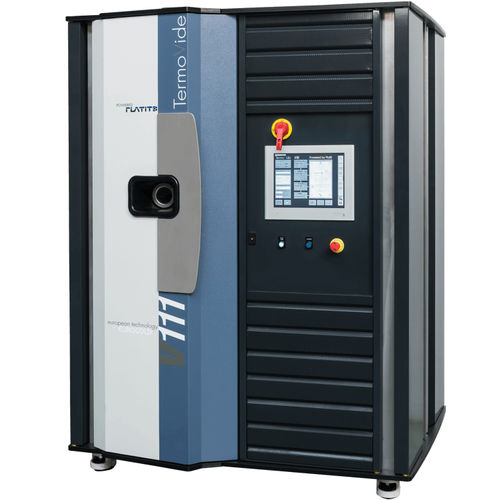

A clean metallic surface is necessary for coating. Contamination such as grinding residue, oil or dust weaken the coating’s adhesion. The industrial single-chamber cleaning units from PLATIT are the result of a partnership with Eurocold: Chamber sizes adapted to coating units by PLATIT Fully automatic cleaning process including vacuum drying Intuitive touch screen with real-time process parameters Remote diagnosis and maintenance Independent of environmental conditions as the system is closed PLATIT offers two different standard sizes of single-chamber cleaning units, which can be tailored to individual customer needs on request, e.g. in terms of: Number of cleaning baths Bath filtration Immersion rinsing Cleaning unit V111 Chamber volume [mm]: W 350 x D 390 x H 480 Loading for shank tools ø 10 x 70 [mm]: 504 pcs. Max. load [kg]: 150 Cycle times [min]: Approx. 45 Cleaning unit V411 Chamber volume [mm]: W 500 x D 500 x H 500 Loading for shank tools ø 10 x 70 [mm]: 1008 pcs. Max. load [kg]: 200 Cycle times [min]: Approx. 45
