Radial fan FAN-28
wall-mountedextraction230VAC

Radial fan - FAN-28 - PLYMOVENT - wall-mounted / extraction / 230VAC
Radial fan - FAN-28 - PLYMOVENT - wall-mounted / extraction / 230VAC
Add to favorites
Compare this product
Go to the PLYMOVENT website for more information

Characteristics

Configuration
radial
Type
wall-mounted
Function
extraction
Supply voltage
230VAC, 400VAC, 115VAC
Applications
industrial
Air flow

2,400 m³/h
(84,755.2 ft³/h)

Diameter

160 mm, 200 mm
(6.299 in, 7.874 in)

Rotational speed

2,800 rpm
(17,593 rad.min-1)

Noise level

69 dB

Description

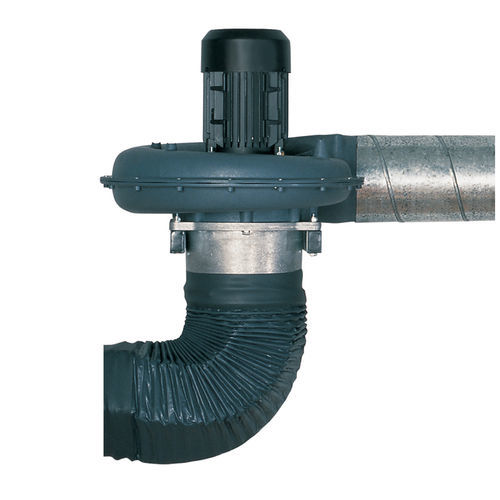

The FAN-28 is a wall-mounted extraction fan that provides extraction for plastic tube extraction arms with and without filtration. 0.75 kW Features • Low noise level • Direct-mount on 1 extraction arm • Optional automatic start and stop • Mostly used with the UltraFlex, Flex, T-Flex extraction arms FAN-28 is a wall-mounted extraction fan FAN-28 is especially designed to fit the large diameter (200mm) arms in our extraction arm program. By fitting individual fans to each extraction arm, optimum extraction is guaranteed and you remain flexible when the layout of the factory changes. The FAN-28 is a wall-mounted extraction fan that provides extraction for T-Flex, T-Flex/CW, Flex and UltraFlex extraction arms with or without filtration. Recommended for • One extraction point • Welding processes with light to medium intensity Features • Low noise level • Direct-mount on 1 extraction arm • Efficient • Optional automatic start and stop
