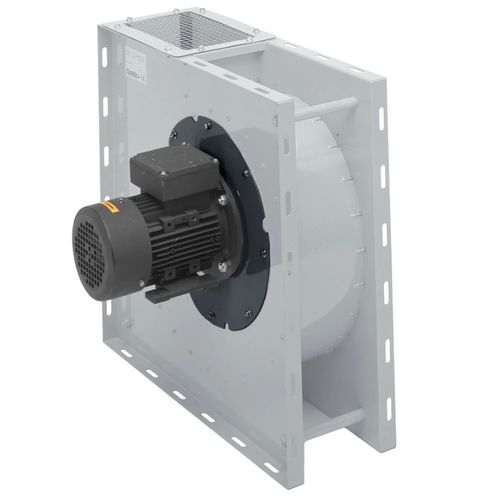

Floor-standing fan TEV-559

centrifugalextractionventilation

The TEV 60 Hz series ventilation fans are designed for use as central fans in larger systems with multiple extraction points. 1.5-11,0 kW (2,0-15.0 hp) Features High efficiency Energy saving Easy mount housing The TEV-559 60 Hz is an energy saving central fan The TEV 60 Hz series ventilation fans are designed for use as central fans. These fans are equipped with lightweight aluminium impellers, suited to exhaust gases, volatile fumes and dust. Matched inlet and outlet areas, together with the optimized impellers, ensure even airflow, high capacity and low noise level. Step up your game against exhaust gas, volatile fumes and dust with one of these options TEV-359; 2 HP (1,5 kW) TEV-3110; 3 HP (2,2 kW) TEV-559; 3 HP (2,2 kW) TEV-585; 7.5 HP (5,5 kW) TEV-745; 10 HP (7,5 kW) TEV-768; 15 HP (11 kW) Features High efficiency Energy saving Easy mount housing Controllable by frequency inverter Recommended for Big extraction system with multiple extraction points for removal of vehicle exhausts, welding fumes, oil mist or dust.
