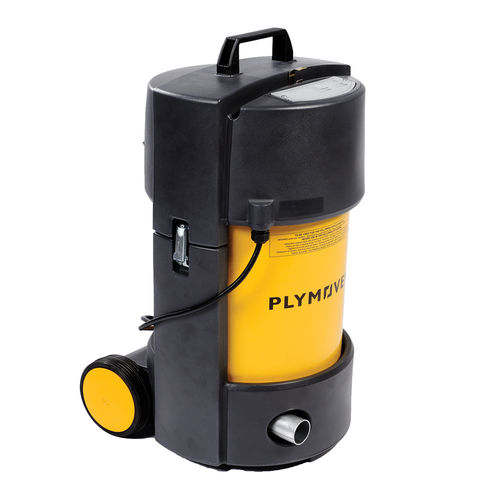

Transportable fume extractor PHV

weldingdry filteractivated carbon filter

The PHV is a high-vacuum portable unit the size of a vacuum cleaner. It can be used everywhere, even locations that are not or hardly accessible to stationary and larger mobile units. Features Long filter lifespan of the Dura-H filter cartridge Automatic start/stop system, saving energy costs Low noise level dge. A removable/cleanable aluminium pre filter captures the larger particles while the integrated spark arrester captures the finer particles. The Dura-H main filter cartridge has a surface of 12 m2 (129 ft2), resulting in a long filter lifespan and a consistent high filtration thanks to the alternately sealed channel technology. The optional activated carbon filter (FAC -HV) neutralises unpleasant smells. The final HEPA* filter guarantees the high filtration efficiency. The HEPA filter makes the PHV suitable for stainless steel welding fume applications and is fitted as standard. * High Efficiency Particulate Arrester or HEPA is a type of air filter. To qualify as HEPA by government standards, an air filter must remove 99.97% of 0.3 micrometre particles from the air that passes through. This (lonely) cart needs the help of a hose and a nozzle Combine the PHV with one of the following hoses and nozzles: Extraction hose: 2.5, 5 or 7.5 m (8, 16, 24.5 ft) EN-20: Funnel nozzle EN-40: Slit extraction nozzle
