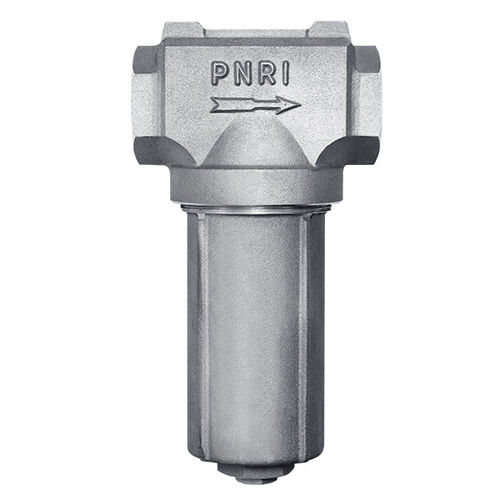

High-capacity filter VEM series
liquidcartridgewire mesh

high-capacity filter
high-capacity filter
high-capacity filter
high-capacity filter
high-capacity filter
Add to favorites
Compare this product


Characteristics

Designed for
liquid
Filtration element
cartridge, wire mesh
Applications
for industrial applications
Material
stainless steel, cast aluminum
Mounting
threaded
Other characteristics
high-capacity
Filtration size

30 µm, 60 µm, 80 µm

Operating pressure

10 bar, 30 bar, 40 bar (145.038 psi)

Flow

Min.: 70 l/min (18.492 us gal/min)

Max.: 1,050 l/min (277.381 us gal/min)

Description

VEM filters are specially designed for high particle retention, easy maintenance and great efficiency in harsh operating conditions. Their bowl houses a large size cartridge for a longer operating life and reduced servicing times. The threaded connection to the filter body allows a quick removal with no need of tools. A plug placed at the bottom of the bowl allows to fit in a ball valve to purge the filter.
