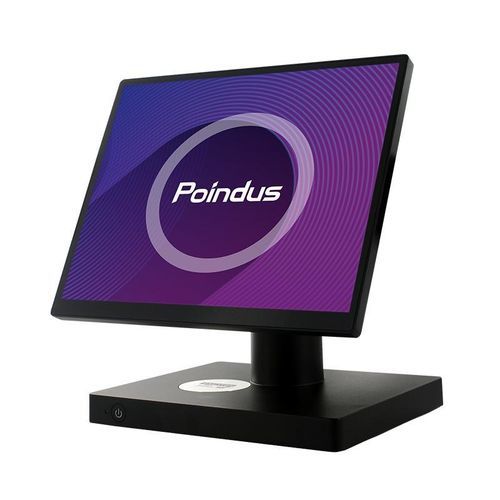

All-in-one terminal VariPOS S150

multitouch screenprojected capacitive touchscreentable-top

Product Overview

• Support Intel® Celeron, Alder Lake P, U-series i3, i5 & i7 CPU.
• Slim modern design with 15” (4:3) slim edge Pcap touch design.
• Operator screen swivelable design and supports a range of rear displays.
  • Standard Customer Displays (Rear Panel Mounted) – 10.1“ 16:10 customer screen | 2×20 Character LCM
  • Large Marketing Rear Displays – (Base Bracket Mounted) – 15″ 4:3 | 15.6″ 16:9 (Horizontal or Vertical) | 21.5″ 16:9 Display
• Fan-less design – enhancing lifespan and reliability.
• Compact design with rich IO ports and function expansion support
  • RAID 0/1, Powered USB. (project based)
• Full range of retail-ready POS peripherals

Maximum Performance
VariPOS S series has been designed to deliver maximum performance and system stability under the heaviest load. Advanced cooling technology ensures the system stays cool and doesn’t thermal throttle impeding performance. The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
Amazing Displays
VariPOS S150 has the traditional 15″ 4:3 main display to meet most legacy retail and hospitality application requirements. Additionally, the rear bracket supports a standard 10.1″ customer display up to full size 15″ 4:3 display, 15.6″ 16:9 (horizontal or vertical) display or a large 21.5″ 16:9 display. This flexibility in display configuration gives excellent marketing opportunities right at the point of sale. System Integrators who prefer the 4:3 aspect ratio for their retail applications will find this an excellent fit.
Deliver the Power to Perform

• Intel Core CPU 12th Generation: Core i3, i5, i7 & Celeron in a fanless architecture.
• Advanced Cooling: Fan-less, Silent running & prolonged lifespan
• Retail Ready Peripherals: Complete range of Peripherals
• Multiple Display Options: Landscape & Portrait Configurations

Award Winning Design
Our Model S won over the judges at the 2024 iF DESIGN AWARDS 2024, its evolution VariPOS S Series was awarded the prestigious Red Dot Design Award 2025. The new VariPOS S Series is an evolutionary design that is even more focused on meeting the needs of retailers. This stylish design delivers a modern aesthetic that fits with any brand image and is well suited to any retail scenario.
Peripherals
The VariPOS S Series delivers a complete range of retail ready peripherals.
MSR | iButton | RFID | Fingerprint | 2D Scanner | 2nd Display | LCM
Plus a range of Full Size Customer Displays
SoftPOS Payment Support

• 10.1” 2nd display for interactive payment.
• Supports Windows-compatible SoftPOS with NFC payment.
• Simplifies checkout and enhances experience.

No more Cable Chaos
Designed for better integration of payment terminals with smart cable management. Modular design ensures full range of seamlessly integrated peripherals and third party terminals can be mounted directly to the POS in a much more functional way. Easy to deploy and support POS that are easy maintenance for the End-User benefiting store productivity.
Specification
Main Board
PE24 (S150): Intel® Celeron™ Processor
PE26: Intel® Alder Lake-P Platform, Core i3, i5 & i7
Graphic: Intel® UHD Graphics for 10th Gen Intel® Processors / Intel® Iris® Xe Graphics eligible
System Memory: 1 x 8GB DDR4 SO-DIMM memory (Max. 16GB) / 1 x 8GB DDR5 SO-DIMM memory (Max. 32GB)
TPM: Intel F/W TPM 2.0
LCD Sizes:
S150: 15″ 4:3 @1024 x 768 Landscape
S156: 15.6″ 16:9 @ 1920 x 1080 landscape (portrait mode-project based)
S215: 21.5″ 16:9 @ 1920 x 1080 landscape
Touch: True-Flat PCAP multi-touch screen
Storage: M.2 Storage / 1 x SATA III (2.5″ option) (S150), M.2 Storage / 2x SATA III (2.5″ option) (S156/S215)
RAID Function: N/A (S150), Option (2x 2.5″ SATA III storage) (S156/S215)
Panel I/O:
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 3 x USB 3.1 / 3 x USB 2.0
Serial Port: 2 x COM (COM1/2: RJ48 support DC+0/5/12v by BIOS setting, default 0v.)
Cash Drawer: 1 x RJ11 Cash Drawer (Support DC+12V or +24V cash drawer. 1x RJ11 support 2 cash drawers)
Type C: 1 x USB-C support PD+DP
Speaker: 2 x 2W
Power Switch: 1x power on/off button
DC Jack: 1 x DC-jack with lock
Expansion: 1 x M.2 E-Key
OS Support: Windows 10/11 (64 bit), Linux (Ubuntu 22.04)
Power Adapter: DC+19V, 65watt adaptor (*w/PUSB will use 180watt adaptor) (S150), DC+19V, 90watt adaptor (*w/PUSB will use 180watt adaptor) (S156/S215)
Compliance: CE/FCC/LVD
Material: Main Unit: Metal Construction
Default Color: S150: Black, S156/S215: Platinum Silver
Environmental Condition: Operating 0°C~40°C, 10%~90% RH, non-condensing
Peripherals:
MSR: 3-Tracks Slim (AES/TDES Encryption) MSR USB Type
iButton: Dallas Key Reader, USB Type
RFID: 13.56Mhz USB Type
Fingerprint: DigitalPersona U.are.U 4500 Module, USB Type
Scanner: 2D scanner, USB Type
2nd Display: 10.1“ 16:10 @ 1280 x 800 2nd screen, USB interface; Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18093, FeliCa; 15.6″ 16:9 @ 1920×1080 2nd screen (Landscape or Portrait mode) for PE26
LCM: 2×20 Character LCM, USB Type
PinPad Bracket: Support for Verifone VX820, Verifone MX915, PAX A80
Optional Configuration (Project Based): Powered USB ports (2x DC+12v and 1x DC+24v) or RAID 0/1 (Dual 2.5″ SSD)
Dimensions (W x H x D mm): S150: 322.53 x 346.72 x 223.98
Weight (N.W. / G.W.): S150: 4.6 kgs / 6.2 kgs
Technical Specifications (Summary)

• CPU: Intel® Celeron, Alder Lake P, U-series i3, i5 & i7
• Main Display: 15” (4:3) slim edge Pcap touch
• Fanless design
• Multiple rear display options: 10.1”, 15”, 15.6”, 21.5”
• Rich I/O: USB 3.1, USB 2.0, COM, RJ11, USB-C
• OS: Windows 10/11 (64 bit), Linux (Ubuntu 22.04)
• Material: Metal Construction
• Color: Black
• Dimensions: 322.53 x 346.72 x 223.98 mm
• Weight: 4.6 kgs (net), 6.2 kgs (gross)
