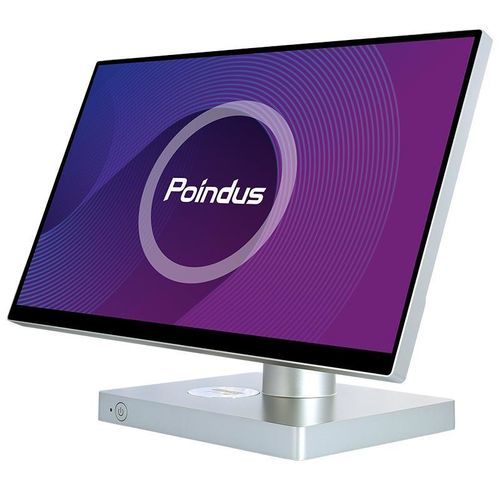

All-in-one terminal VariPOS S215

multitouch screenprojected capacitive touchscreentable-top

Product Overview

• Superior POS Systems, enabling you to respond to market demand.
• Stylish Retail-Ready Technology

Main Features

• Supports Intel® Celeron, Alder Lake P, U-series i3, i5 & i7 CPU.
• Slim modern design with 21.5″ (16:9) slim edge Pcap touch design.
• Operator screen swivelable design and supports a range of rear displays.
• Standard Customer Displays (Rear Panel Mounted): 10.1“ 16:10 customer screen | 2×20 Character LCM
• Large Marketing Rear Displays (Base Bracket Mounted): 15″ 4:3 | 15.6″ 16:9 (Horizontal or Vertical) | 21.5″ 16:9 Display
• Fan-less design – enhancing lifespan and reliability.
• Compact design with rich IO ports and function expansion support
  • RAID 0/1, Powered USB (project based)
• Full range of retail-ready POS peripherals

Performance & Design

• 12th Generation Intel Core CPU: Core i3, i5, i7 & Celeron in a fanless architecture.
• Advanced Cooling: Fan-less, silent running & prolonged lifespan.
• Retail Ready Peripherals: Complete range of peripherals.
• Multiple Display Options: Landscape & Portrait Configurations.

Maximum Performance

• Designed for maximum performance and system stability under heavy load.
• Advanced cooling technology prevents thermal throttling.
• Crucial for productivity, usability, accuracy, and user experience.

Award Winning Design

• Model S won the 2024 iF DESIGN AWARDS.
• VariPOS S Series awarded Red Dot Design Award 2025.
• Modern aesthetic fits any brand image and retail scenario.

Peripherals

• Complete range of retail-ready peripherals: MSR, iButton, RFID, Fingerprint, 2D Scanner, 2nd Display, LCM.
• Full size customer displays supported.

Display Options

• 21.5″ 16:9 display for advanced project requirements.
• Rear bracket supports: 10.1″ customer display, 15″ 4:3, 15.6″ 16:9 (horizontal/vertical), 21.5″ 16:9 display.
• Flexible display configuration for marketing at point of sale.

Payment Integration

• Designed for better integration of payment terminals and smart cable management.
• Modular design for seamless integration of peripherals and third-party devices.
• Easy to deploy, support, and maintain for end-users.

SoftPOS Payment Support

• 10.1” 2nd display for interactive payment.
• Supports Windows-compatible SoftPOS with NFC payment.
• Simplifies checkout and enhances experience.

Technical Specifications
Model
VariPOS S215
Main Board
PE26
Processor
Intel® Alder Lake-P Platform
Core i3, i5 & i7
Graphics
Intel® Iris® Xe Graphics eligible
System Memory
1 x 8GB DDR5 SO-DIMM memory (Max. support up to 32GB)
TPM
Intel F/W TPM 2.0
Display & Touch
LCD Size: 21.5″ 16:9 @ 1920 x 1080 landscape
Touch: True-Flat PCAP multi-touch screen
Storage
M.2 Storage / 2x SATA III (2.5″ option)
RAID Function: Option (2x 2.5″ SATA III storage)
Panel I/O
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 3 x USB 3.1 / 3 x USB 2.0
Serial Port: 2 x COM (COM1/2: RJ48 support DC+0/5/12v by BIOS setting, default 0v)
Cash Drawer: 1 x RJ11 Cash Drawer (Support DC+12V or +24V, 1x RJ11 supports 2 cash drawers)
Type C: 1 x USB-C support PD+DP
Speaker: 2 x 2W
Power Switch: 1x power on/off button
DC Jack: 1 x DC-jack with lock
Expansion Slots
1 x M.2 E-Key
OS Support
Windows 10/11 (64 bit), Linux (Ubuntu 22.04)
Power Adapter
DC+19V, 90watt adaptor (*w/PUSB will use 180watt adaptor)
Compliance
Certifications: CE/FCC/LVD
Material
Main Unit: Metal Construction
Default Color
Platinum Silver
Environmental Condition
Operating: 0°C~40°C, 10%~90% RH, non-condensing
Peripherals
MSR: 3-Tracks Slim (AES/TDES Encryption) MSR USB Type
iButton: Dallas Key Reader, USB Type
RFID: 13.56Mhz USB Type
Fingerprint: DigitalPersona U.are.U 4500 Module, USB Type
Scanner: 2D scanner, USB Type
2nd Display: 10.1“ 16:10 @ 1280 x 800 2nd screen, USB interface; Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18093, FeliCa; 15.6″ 16:9 @ 1920×1080 2nd screen (Landscape or Portrait mode) for PE26
LCM: 2×20 Character LCM, USB Type
PinPad Bracket: Support for Verifone VX820, Verifone MX915, PAX A80
Optional Configuration (Project Based): Powered USB ports (2x DC+12v and 1x DC+24v) or RAID 0/1 (Dual 2.5″ SSD)
Dimensions (W x H x D mm)
493.92 x 364.98 x 252.89
Weight (N.W. / G.W.)
7.5 kgs / 9.5 kgs
Characteristics / Technical Specifications

• Model: VariPOS S215
• CPU: Intel® Celeron, Alder Lake P, U-series i3, i5 & i7
• Display: 21.5″ 16:9 @ 1920 x 1080, True-Flat PCAP multi-touch
• Memory: 1 x 8GB DDR5 SO-DIMM (Max 32GB)
• Storage: M.2 / 2x SATA III (2.5″ option), RAID 0/1 option
• Ports: 3 x USB 3.1, 3 x USB 2.0, 2 x COM, 1 x RJ11, 1 x USB-C, 1 x Gigabit Ethernet
• Peripherals: MSR, iButton, RFID, Fingerprint, 2D Scanner, 2nd Display, LCM
• Certifications: CE/FCC/LVD
• Material: Metal Construction
• Color: Platinum Silver
• Operating Temp: 0°C~40°C
• Dimensions: 493.92 x 364.98 x 252.89 mm
• Weight: 7.5 kgs / 9.5 kgs
