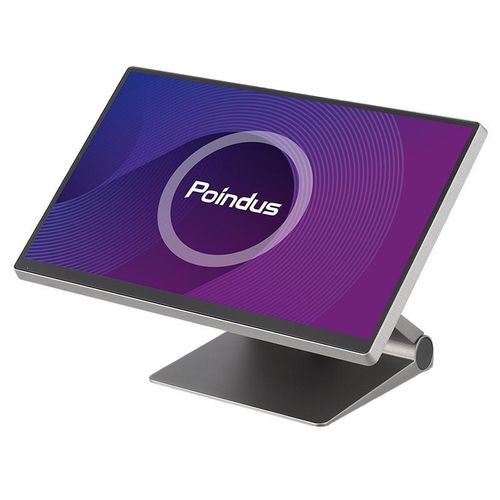

Projected capacitive touchscreen terminal VariPOS 256 series

table-top1920 x 1080Intel® Celeron®

Product Overview
Superior POS Systems, enabling you to respond to market demand.

• 15.6″ 16:9 Wide TFT Full HD LCD (1920×1080) (LED backlight), 350 nits.
• The World’s Slimmest Edge Bezel Design (4.8mm)
• Intel 7th Generation to 12th Generation CPU Core i3, i5 & Celeron in a fanless architecture.
• Supports USB-C for function expansion (VariIO I/O Box)
• Extendable IO capability meets any project specification (VariIO I/O Box)
• Dual Hinged Stand for Extreme Flexibility
• VESA 75/100 bracket for PPC/Wall-Mounting Applications
• Peripheral compatibility across the whole VariPOS 2 Series: 2D Scanner, RFID, MSR, iButton, Fingerprint, LCM & 10″ 2nd Display.
• TSE Adapter for VariPOS (KassenSichV) Compliant

Design & Display
VariPOS 256S/256A delivers the latest ultra-slim bezel design (4.8mm) widescreen display for a more streamlined appearance; a flawless combination of style and functionality. The sleek and modern widescreen provides clean lines and a seamless viewing experience helping users focus on tasks and eliminating surrounding distractions. System Integrators can deliver more intuitive widescreen menu layouts and create dynamic menus for retail, hospitality & industrial applications.
Performance
The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience. The VariPOS 256S/256A delivers vivid high definition picture quality and enhances productivity in any retail store. The HD display gives the user more accurate screen colors and high resolution imagery perfect for applications like clothing retail.
VariPOS 256S/256A sets a new bar giving developers the opportunity to design more advanced graphical user interfaces for highly complex and image intensive applications.
Mounting & Flexibility
Multiple Mount Options: Stand, Pole & Wall Mount Configurations.
Dual Hinged Stand: Allows for extreme tilt flexibility making it easily adjustable from completely flat to any viewing angle for optimal efficiency, productivity and operator comfort. The Stand also provides hidden cable management channels to organize and conceal cabling within the stand maintaining the aesthetic look.
Compact footprint ensures the VariPOS 256S/256A can be deployed in the most space restricted environments, optimizing sales counter space in virtually any retail or hospitality scenario.
Peripherals
Cross Compatible Peripherals across the VariPOS 2 Series: MSR, iButton, Finger Print, 2D Scanner, RFID, LCM and 2nd Display.
Reduces peripheral inventory and deploys peripherals to sites easily with no compatibility issues.
USB-C Expansion
VariIO I/O Box Advanced Scalability: Offers all the standard I/O connections with support for Point of Sale specific connections. Extends connectivity, supporting additional LAN, COM & Powered USB connectivity and connects via a single custom high-speed USB Type C connector to maintain high I/O transfer rates. The independently mountable I/O also allows for extreme scalability and removes the need for over provisioned I/O costs.
Service & Maintenance
Designed with multiple configurations to meet any scenario using cutting-edge modular design and quick swap out components; introduced the latest USB-C Support to deliver advanced I/O connectivity and a full range of cross compatible peripherals.
Easy to deploy and support terminals that save engineer time and training resources, easy maintenance for the End-User benefiting the store and remaining more productive.
SoftPOS Payment Support

• 10.1” 2nd display for interactive payment.
• Supports Windows-compatible SoftPOS with NFC payment.
• Simplifies checkout and enhances experience.

Specification
Main Board
VariPOS 256S (PE17MB)
VariPOS 256A (PE24MB)
VariPOS 256A (PE26MB)

Processor
VariPOS 256S: Intel® Core™ i5 Processor, Intel® Core™ i3 Processor, Intel® Celeron™ Processor
VariPOS 256A (PE24MB): Intel® Celeron™ Processor
VariPOS 256A (PE26MB): Intel® Alder Lake-P Platform i5/i3

Chipset: CPU Integrated
System Memory: 1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. support up to 16GB (PE17MB/PE24MB); 1 x 8GB DDR5 SO-DIMM memory (Max. support up to 32GB) (PE26MB)
TPM: Intel F/W
Intel AMT: i5 CPU Only (PE17MB/PE26MB)

Display & Touch
LCD Size: 15.6″ 16:9 TFT LCD (LED backlight)
Bezel: Slim-Edge 4.8mm Bezel Design
Resolution: 1920 x 1080 (16:9), Full HD
Brightness: 350 Nits
Touch: True Flat Projected Capacitive Technology

Storage
HDD/SSD: 1 x SATA III (2.5”); 1 x SATA III (2.5”) or M.2 Storage (Option) (PE24MB/PE26MB)

Panel I/O
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 2 x USB 3.0 (PE17MB); 3 x USB 2.0, 3 x USB 3.1 (PE24MB/PE26MB)
Com Port: N/A (PE17MB); 2 x RJ48 (Support DC+0/5/12v by BIOS setting, default setting is 0v) (PE24MB/PE26MB)
Cash Drawer: N/A (PE17MB); 1 x RJ11 (Support DC+12v or +24v (default)) port supports 2 cash drawers (PE24MB/PE26MB)
Type C: N/A (PE17MB); 1 x Type C (PE24MB/PE26MB)
Speaker: HD Audio, 2W Speaker x 2
Power Switch: 1 x power on/off button
DC Input: 1 x MiniDin 4P (DC +19v only)

VariIO I/O Box & Expansion (Optional)
Cash Drawer: 1 x RJ-11 (Support DC +12V or +24V (default)) port supports 2 cash drawers
LAN port: 1 x Gigabit Ethernet by RJ-45
USB port: 2 x USB 3.0; 4 x USB 2.0
Powered USB Port: 2 x DC+12v Powered USB; 1 x DC+24v Powered USB
COM port: 4 x RS-232 (jumper setting, support DC+0/5/12v, default setting is 0v)
Type C: 1 x Type C (PE24MB/PE26MB)

OS Support: Win 10 (64bit) / Win 7 (32bit/64bit) (PE17MB); Windows 10 (64bit) | Windows 11 (64bit) (Option) | Linux (PE24MB/PE26MB)
Power Adapter: Voltage:+19VDC, Std. 90 watt (PE17MB); Std. 65 watt (PE24MB/PE26MB); *PUSB will use 180 watt adapter

Compliance: CE, FCC, LVD, RoHS
Protection: IP 56 on front panel
Material: Main Unit: Die-Cast Aluminum
Color: Main Unit: Space Gray / Black
Dimension (WxHxD mm): POS: 362.8 x 304 x 175.3 mm; PPC: 362.8 x 219.9 x 34 mm
Environmental Condition: Operating: 0°C ~ 40°C, 10% ~ 90% RH, non-condensing; Storage: -20°C ~ 60°C, 10% ~ 90% RH, non-condensing

Optional Accessories: MSR (ISO 3-Tracks Slim MSR USB Type), ibutton (Dallas Key Reader, USB Type), RFID (13.56Mhz USB Type), Fingerprint (DigitalPersona U.are.U 4500 Module, USB Type), Scanner (2D scanner, USB Type), 2nd Display (10.1” Resolution 1280 x 800 (16:10 wide screen) USB Type, Touch / Non Touch, Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa), LCM (2×20 LCM, USB Type)
Carton: L460 x 300 x H510 mm

Key Features / Technical Specifications

• 15.6″ 16:9 Full HD LCD, 350 nits brightness
• Ultra-slim 4.8mm edge bezel design
• Intel 7th to 12th Gen CPU (i3, i5, Celeron), fanless
• USB-C expansion (VariIO I/O Box)
• Dual hinged stand, VESA 75/100 mounting
• Cross-compatible peripherals: 2D Scanner, RFID, MSR, iButton, Fingerprint, LCM, 10″ 2nd Display
• TSE/KassenSichV compliance (Germany)
• IP56 front panel protection
• Die-cast aluminum chassis
• Multiple OS support: Windows 10/11, Linux
• Optional accessories: MSR, iButton, RFID, Fingerprint, 2D Scanner, 2nd Display, LCM
