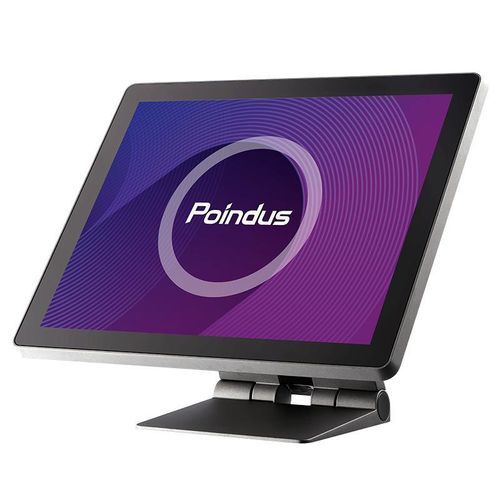

Projected capacitive touchscreen terminal VariPOS series

table-top1024 x 7681280 x 1024

Product Overview

• Superior POS Systems, enabling you to respond to market demand.
• Reddot Design Award Winner 2020

Main Features

• Full range of CPUs from Celeron to Intel 12th Gen. Core i3/i5
• True flat 15” 4:3 /17″ 5:4 LCD (LED backlight), 400 nits with IP66 protection
• Dual Hinged Stand for Maximum Flexibility (Any Angle from Flat/Low Profile to Upright 90°). Secure Base (75 x 75) to surfaces
• Hidden Cable Management channels organize and reduce clutter when connecting accessory cables
• Efficient onboard panel IO interface (LAN + 2 USB)
• Extendable IO capability meets any project specification (VariIO I/O Box) (Optional)
• VariIO I/O Box with customization options & independently mountable with easy maintenance Quick SWAP Design
• Peripheral compatibility across the whole VariPOS 2 Series: 2D Scanner, RFID, MSR, iButton, Fingerprint & 10.1″ 2nd Display
• TSE Adapter for VariPOS (KassenSichV) Compliant

Ergonomics & Design

• Dual hinged stand allows extreme tilt flexibility and secure base attachment to surfaces
• Stand can be easily adjusted upwards with light pressure but requires force to push down, providing a solid platform for simple height and angle adjustment
• Stand can be folded flat or adjusted to any view angle for maximum comfort and optimal efficiency
• 10.1” widescreen 2nd Display for promotional marketing at Point of Sale
• Compact footprint for deployment in space-restricted environments

Performance & Connectivity

• 12th Gen Intel Core processors offer TPM to protect IoT systems & support Microsoft Windows platforms
• Fan-less architecture for silent running and prolonged terminal life
• VariIO I/O Box provides powered USB for retail peripherals (option)
• Front Panel IP66 (Ingress Protection) dust and waterproof protection

Cable Management

• Dual Hinge Stand provides hidden cable management channels to organize and reduce clutter
• Cables are concealed within the stand and covered with a securing plate
• VariPOS S can be combined with the dedicated Poindus VariIO I/O Box for advanced cable management
• Single custom high speed USB Type C connector connects all devices
• POS can be easily removed, leaving the VariIO I/O Box and peripherals in place

I/O Connectivity

• As a standalone device, provides efficient I/O interface for LAN & USB devices
• VariIO I/O Box extends functionality and connectivity, supporting additional LAN, COM & Powered USB connectivity
• Compatible with simple I/O devices for inexpensive connectivity
• VariIO I/O Box connects via a single custom high-speed USB Type C connector

SoftPOS Payment Support

• 10.1” 2nd display for interactive payment
• Supports Windows-compatible SoftPOS with NFC payment
• Simplifies checkout and enhances experience

Scalability, Flexibility and Simplicity

• Perfect standalone device for deploying strategically sited touch-points
• Cost effective way to implement technology with excellent ROI
• Best solution for Pay Stations and Central Information Point terminals requiring advanced connectivity
• Simplified installation and serviceability (quick swap SSD/HDD and VariIO I/O Box)

Specification
VariPOS 250A/270A (PE24)
VariPOS 250A/270A (PE26)

Main Board
Processor
VariPOS 250A/270A (PE24): Intel® Celeron® Processor
VariPOS 250A/270A (PE26): Intel® Alder Lake-P Platform, Core i5, Core i3
Chipset: CPU Integrated
System Memory: 1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. memory support up to 16GB (PE24); 1 x 8GB DDR5 SO-DIMM memory (Max.support up to 32GB) (PE26)
TPM: Intel F/W
Intel AMT: N/A (PE24), i5 CPU Only (PE26)

Display & Touch
LCD Size: 15″ 4:3 TFT LCD (LED backlight), 17″ 5:4 TFT LCD (LED backlight)
Brightness: 400nits
Resolution: 15″ 1024 x 768 (4:3), 17″ 1280 x 1024 (5:4)
Touch: True Flat Projected Capacitive Technology

Storage
HDD/SSD: 1 x SATA III (2.5”) or M.2 Storage (Option)

Panel I/O
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 3 x USB 2.0, 3 x USB 3.1
COM Port: 2 x RJ48 (Support DC+0/5/12v by BIOS setting, default setting is 0v)
Cash Drawer: 1 x RJ11 (Support DC+12v or +24v (default)) port, supports 2 cash drawers
Type C: 1 x Type C
Speaker: HD Audio, 2W Speaker x 2
Power Switch: 1 x power on/off button
DC Input: 1 x Mini Din 4P (DC+19v only)

VariIO I/O Box & Expansion (Optional)
Cash Drawer: 1 x RJ-11 (Support DC +12V or +24V (default)) port supports 2 cash drawers
LAN port: 1 x Gigabit Ethernet by RJ-45
USB port: 2 x USB 3.0; 4 x USB 2.0
Powered USB Port (Project Based): 2 x DC+12v Powered USB, 1 x DC+24v Powered USB
COM Port: 4 x RS-232 (jumper setting, support DC+0/5/12v, default setting is 0v)
Type C: 1 x Type C

OS Support
Windows 10 (64bit) | Windows 11 (64bit) (Option) | Linux

Power Adapter (External Adapter)
PE24: Voltage:+19VDC, Std. 65 watt (*PUSB will use 180 watt adapter)
PE26: Voltage:+19VDC, Std. 90 watt (*PUSB will use 180 watt adapter)

Compliance
Certifications: CE, FCC, LVD, RoHS
Material: Main Unit: Die-Cast Aluminum
Color: Main Unit: Space Gray / Black
Dimension (W x H x D mm): 15″ – 365.893 x 281.89 x 43.23 (PPC) / 17″ – 396.93 x 329.47 x 42.75 (PPC)
Environmental Conditions: Operating: 0°C ~ 40°C, 10% ~ 90% RH, non-condensing; Storage: -20°C ~ 60°C, 10% ~ 90% RH, non-condensing

Optional Accessories
MSR: ISO 3-Tracks Slim MSR USB Type
ibutton: Dallas Key Reader, USB Type
RFID: 13.56Mhz USB Type
Fingerprint: DigitalPersona U.are.U 4500 Module, USB Type
Scanner: 2D scanner, USB Type
2nd Display: 10.1 ” Resolution 1280 x 800 (16:10 wide screen) USB Type, Touch / Non Touch; Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa
LCM: 2×20 LCM, USB Type
Packaging Carton: L460 x 300 x H510 mm

Caractéristiques / Spécifications techniques

• Model: VariPOS 250A/270A
• Processor: Intel® Celeron® or Intel® Alder Lake-P Platform (Core i3/i5)
• Memory: Up to 32GB DDR5 (PE26), up to 16GB DDR4 (PE24)
• Display: 15” 4:3 or 17” 5:4 TFT LCD, 400 nits, True Flat Projected Capacitive
• Storage: 1 x SATA III (2.5”) or M.2 (Option)
• Connectivity: LAN, USB 2.0/3.1, COM, RJ11, Type C, HD Audio
• Optional I/O Expansion: VariIO I/O Box
• OS: Windows 10/11 (64bit), Linux
• Certifications: CE, FCC, LVD, RoHS
• Material: Die-Cast Aluminum
• Color: Space Gray / Black
• Environmental: Operating 0°C ~ 40°C, Storage -20°C ~ 60°C
• Optional Accessories: MSR, iButton, RFID, Fingerprint, 2D Scanner, 2nd Display, LCM
