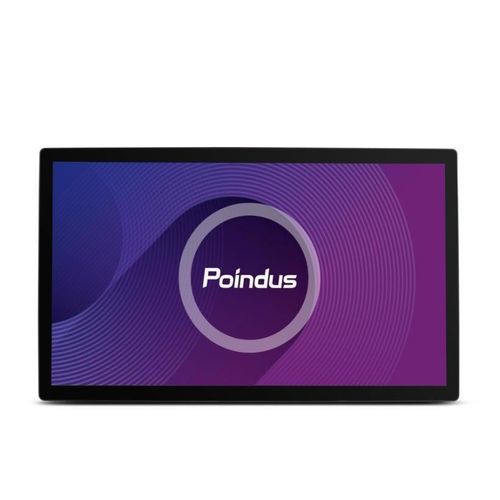

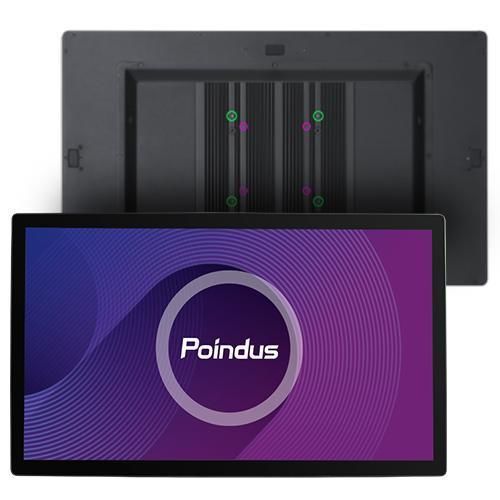

Touch screen panel PC PPC-215

LED backlightPCAP capacitive touch screenmultitouch screen

Overview
The PPC-215 is a compact Panel PC designed for POS, retail and hospitality environments. It integrates a 21.5" Full HD touch display with IP65 front ingress protection, multiple Intel® CPU platform options and a fanless design for quiet, maintenance‑friendly operation. Modular connectivity and flexible mounting make it suitable for counters, kiosks and kitchen display systems.

Features

• Choice of onboard Intel® CPU platforms: Elkhart Lake Celeron, Alder Lake‑P, U‑series Core i3 / i5 (Core i7 available project‑based).
• 10‑point PCAP multi‑touch for accurate, reliable touch input.
• Intel® F/W TPM 2.0 for platform security.
• Front panel IP65 ingress protection for use in harsh or high‑traffic areas.
• Fanless architecture for silent operation and lower maintenance.
• VESA 100 x 100 compatible for versatile installation.
• Dedicated M.2 A/E Key slot for Wi‑Fi / Bluetooth modules (project‑based) with external antenna options.
• Project‑based extension modules available for custom I/O or storage configurations.

Product Highlights

• 21.5" Full HD (1920 x 1080) LED display, 250 cd/m².
• Front IP65 ingress protection suitable for retail and food service counters.
• Scalable performance with Intel® Core i3 / i5 (i7 optional) and optimized heatsink design.

Display Flexibility
The PPC series supports standard project display sizes including 21.5" (16:9), 23.8" (16:9) and 32" (16:9). Custom sizes can be provided on request to match specific project requirements.

Easy Integration
Supported OS include Windows 10/11 (64‑bit) and Linux (e.g. Ubuntu 22.04), enabling straightforward integration into existing POS and back‑office systems.

Designed for Precise, Confident Touch
Responsive 10‑point PCAP multi‑touch delivers accurate input performance suitable for POS terminals, KDS and interactive retail displays.

WiFi / BT Connectivity
Dedicated M.2 A/E Key slot and external antenna options enable reliable wireless connectivity via project‑based Wi‑Fi/Bluetooth modules.

Application Scenarios

• Retail counters and POS systems
• Quick service and full service restaurants (KDS / front counters)
• Pharmacies and jewelry stores
• Logistics management and kitchen display systems

Versatile Mounting Solutions
Supports stand, pole mount and VESA 100×100 wall mount options to minimize footprint and adapt to constrained workspaces.

Technical Specifications

• System Information: PE24 – Intel® Elkhart Lake Celeron; PE26 – Intel® Alder Lake‑P / U‑platform supporting Core i3 / i5 (Core i7 up to 4.7 GHz project‑based). Intel® AMT supported for i5/i7. TPM: Intel® F/W TPM 2.0.
• System Memory: PE24: 1 x SO‑DIMM DDR4 slot, 8GB standard, up to 16GB. PE26: 1 x SO‑DIMM DDR5 slot, 8GB standard, up to 32GB.
• Display & Touch: 21.5" Full HD 1920×1080, 250 cd/m² LED backlight, 10‑point PCAP multi‑touch.
• Storage: PE24: 1 x M.2 PCIe SSD. PE26: 1 x M.2 PCIe SSD or 2 x 2.5" SSD for RAID 0/1 (project‑based).
• Expansion: 1 x M.2 E Key slot (Wi‑Fi/BT, project‑based).
• Connectivity: 3 x USB 2.0, 3 x USB 3.1; 2 x RJ‑48 COM (DC+0/5/12V by BIOS setting, default 0V); 1 x USB‑C (DP + PD); 1 x RJ45 Gigabit Ethernet with WOL and PXE; 1 x RJ11 (DC+12V or 24V default) for up to 2 cash drawers; 1 x 4‑pin DIN lock for DC‑IN.
• Audio: 2 x 2W speakers.
• Power Requirement: Input 100–240Vac / 50–60Hz; Output DC+19V via 90W AC‑to‑DC adapter.
• Mechanical & Construction: Front panel IP65; fanless; weight NW/GW: 5.7 kg / 7.5 kg; dimensions (W x H x D): 510.6 x 307.2 x 64.79 mm; mounting: Wall / Pole / VESA 100×100; aluminum frame with sheet metal chassis.
• Environmental: Operating: 0°C to 40°C, 10%–90% RH non‑condensing. Storage: ‑20°C to 60°C, 10%–90% RH non‑condensing.
• Certification: CE / FCC / LVD.
• OS Support: Windows 10/11 (64‑bit), Linux (Ubuntu 22.04).
