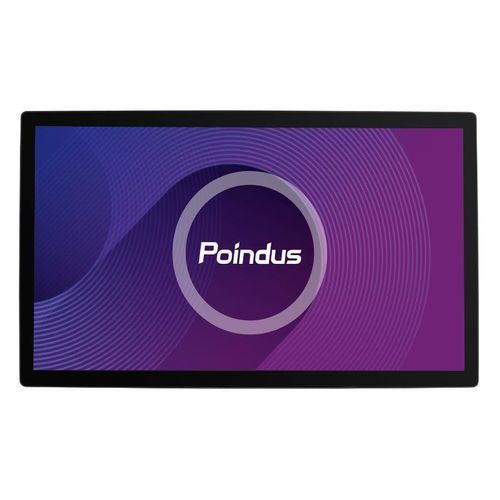

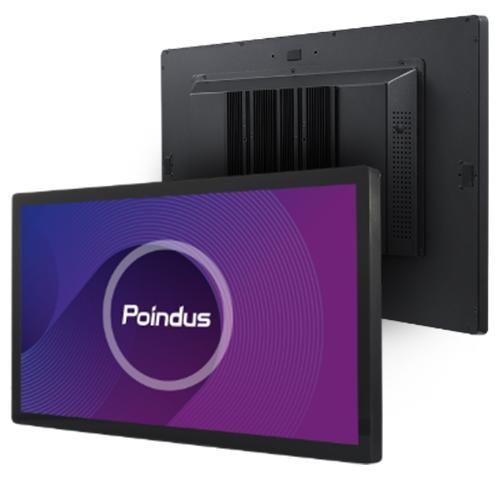

Multitouch screen panel PC PPC-215
LED backlightPCAP capacitive touch screen21.5"

Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5"
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5"
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 2
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 3
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 4
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 5
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 6
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 7
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 8
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 9
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 10
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 11
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 12
Multitouch screen panel PC - PPC-215 - Poindus - LED backlight / PCAP capacitive touch screen / 21.5" - image - 13
Add to favorites
Compare this product
Go to the Poindus website for more information

Characteristics

Screen type
multitouch screen, LED backlight, PCAP capacitive touch screen
Display size
21.5"
Resolution
full HD, 1920 x 1080
Processor
Intel® Core i3 3217U
Operating system
Windows 11, Linux, Windows 10, Linux® Ubuntu™
Construction
fanless, aluminum frame, metal chassis
Mounting
wall-mounted, VESA mounting
Applications
POS
Protection level
IP65
Other characteristics
WiFi, USB 2.0, Bluetooth, USB Type-C, RJ45, Ethernet
Memory size

Min.: 8 GB

Max.: 32 GB

Description

Overview
  • The PPC-215 is a 21.5" panel PC designed for retail and hospitality integration, offering a fanless, front-IP65 protected display and multiple platform options (Intel® Celeron, Core i3/i5 and project-based Core i7).


Key Features
  • 10-point PCAP multi-touch
  • Front panel IP65 ingress protection
  • Fanless thermal design for silent operation
  • VESA 100×100 mounting compatibility
  • Intel F/W TPM 2.0 and optional Intel AMT (i5/i7)


Product Highlights
  • 21.5" Full HD (1920×1080), 250 cd/m², LED backlight
  • Multiple CPU platform options including Intel® Celeron, i3, i5 (project-based i7)
  • Extension module and M.2 WiFi/BT support (project based)
  • Flexible storage configurations (M.2 PCIe / 2.5" SSD options)


Display & Touch
  • 21.5" Full HD (1920×1080) display, 250 cd/m²
  • 10-point projected capacitive (PCAP) multi-touch for accurate input


Storage & Memory
  • PE24: 1 × M.2 PCIe SSD
  • PE26: 1 × M.2 PCIe SSD or 2 × 2.5" SSD (RAID 0/1, project based)
  • Memory: PE24 = 1 × SO-DIMM DDR4 (8GB standard, up to 16GB); PE26 = 1 × SO-DIMM DDR5 (8GB standard, up to 32GB)


Connectivity & Expansion
  • Expansion: 1 × M.2 E Key (WiFi/BT, project based)
  • USB: 3 × USB 2.0, 3 × USB 3.1
  • Serial: 2 × RJ-48 COM (configurable DC+0/5/12V by BIOS; default 0V)
  • Video/Power: 1 × Type-C (DP + PD)
  • LAN: 1 × RJ45 Gigabit Ethernet (10/100/1000M) with WOL, PXE
  • Peripheral: 1 × RJ11 supporting DC+12V or DC+24V (default) for up to 2 cash drawers
  • Power input: 4-pin DIN with lock for DC-IN


Audio
  • 2 × 2W built-in speakers


Power & Mechanical
  • AC input: 100–240 Vac, 50–60 Hz; adapter output DC+19V, 90W
  • Front panel IP65; fanless chassis
  • Weight: 5.7 kg (NW) / 7.5 kg (GW)
  • Dimensions (W×H×D): 510.6 × 307.2 × 64.79 mm
  • Mounting: Wall / Pole / VESA 100×100
  • Construction: Aluminum frame with sheet metal chassis


Environmental & Certification
  • Operating: 0°C to 40°C, 10%–90% RH non-condensing
  • Storage: -20°C to 60°C, 10%–90% RH non-condensing
  • Certifications: CE, FCC, LVD


OS Support & Integration
  • Supported OS: Windows 10/11 (64-bit), Linux (e.g. Ubuntu 22.04)
  • Designed for easy integration in retail and hospitality systems; available in other display sizes (23.8", 32") or custom sizes on request


Technical Specifications
  • System platforms: PE24 (Intel® Elkhart Lake Celeron); PE26 (Alder Lake-P/U platform) — optional Core i7 (project based, up to 4.7 GHz), Core i5 (up to 4.4 GHz), Core i3 (up to 4.4 GHz)
  • System memory: PE24 = 1 × SO-DIMM DDR4 (8GB standard, up to 16GB); PE26 = 1 × SO-DIMM DDR5 (8GB standard, up to 32GB)
  • TPM: Intel® F/W TPM 2.0
  • Display & touch: 21.5" Full HD (1920×1080), 250 cd/m², 10-point PCAP
  • Storage: PE24 = 1 × M.2 PCIe SSD; PE26 = 1 × M.2 PCIe SSD or 2 × 2.5" SSD (RAID 0/1, project based)
  • Connectivity: 3 × USB 2.0, 3 × USB 3.1, 2 × RJ-48 COM, 1 × Type-C (DP+PD), 1 × RJ45 Gigabit, 1 × RJ11 (cash drawer), 1 × 4-pin DIN DC-IN
  • Audio: 2 × 2W
  • Power: AC 100–240 Vac 50–60 Hz; adapter DC+19V 90W
  • Mechanical: Front IP65, fanless, weight 5.7 kg, dimensions 510.6 × 307.2 × 64.79 mm, Wall/Pole/VESA100×100 mounting
  • Environmental: Operating 0°C–40°C; Storage -20°C–60°C; 10%–90% RH non-condensing
  • Certifications: CE, FCC, LVD
