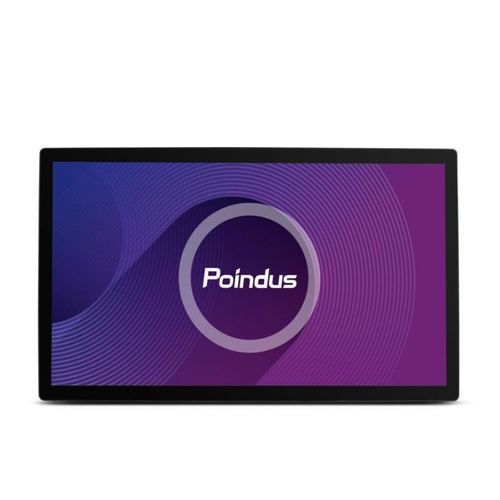

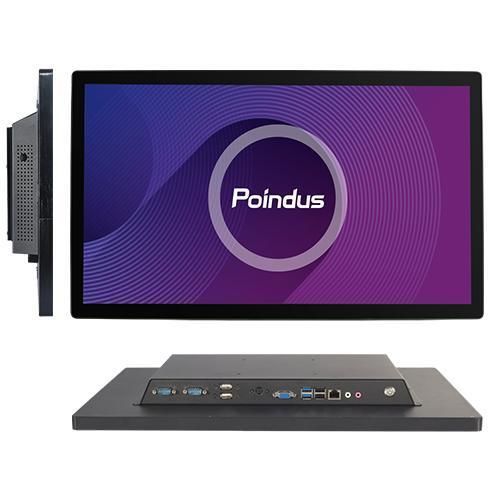

LED backlight panel PC PPC-215

PCAP capacitive touch screentouch screenmultitouch screen

Product overview
The PPC-215 is a compact, fanless panel PC designed for retail and hospitality environments. It is offered in configurations based on Intel® Elkhart Lake Celeron (PE24) and Intel® Alder Lake‑P / U platforms (PE26) supporting U‑series i3/i5 and project‑based Core i7 options. Typical deployments include forecourts, POS counters, pharmacies and kitchen display systems.

Features

• Onboard Intel® Elkhart Lake Celeron or Alder Lake‑P / U‑series CPUs (Core i7 option available per project)
• 10‑point PCAP multi‑touch for precise input
• Intel F/W TPM 2.0 for platform security
• Front panel IP65 ingress protection
• Fanless design for silent, low‑maintenance operation
• VESA 100 x 100 compatible for varied mounting (wall / pole / stand)
• M.2 A/E or E Key slots for Wi‑Fi/BT modules (project based)
• Extension module design to support project‑specific expansions

Product highlights

• 21.5 in Full HD (1920 x 1080) display
• Front IP65 protection suitable for public and service counters
• Flexible CPU options: Intel® Celeron, Alder Lake‑P, U‑series i3/i5 (Core i7 option project based)
• Advanced heatsink to maximize thermal performance for higher‑TDP CPU options
• VESA‑compliant mounting for installation versatility

Display & touch

• 21.5 in Full HD (1920 x 1080), 250 cd/m² LED backlight
• 10‑point PCAP multi‑touch for accurate and responsive input

Display flexibility
The PPC series supports standard display sizes: 21.5 in (16:9), 23.8 in (16:9) and 32 in (16:9). Custom sizes are available on request for project requirements.

Connectivity & expansion

• M.2 E Key slot for Wi‑Fi/BT (project based)
• USB: 3 x USB 2.0, 3 x USB 3.1
• 1 x USB Type‑C (DP + PD)
• Ethernet: 1 x RJ45 Gigabit (10/100/1000M) with WOL and PXE
• Serial: 2 x RJ‑48 COM ports (configurable DC levels via BIOS)
• 1 x RJ11 (default DC+12V or 24V) supporting 2 cash drawers
• 1 x 4‑pin DIN with lock for DC‑IN

Software & OS
Supports Windows 10 (64‑bit), Windows 11 (64‑bit) and Linux distributions (e.g. Ubuntu 22.04).

Application scenarios

• Gas stations / forecourt convenience
• Jewelry and specialty retail stores
• Pharmacies
• Kitchen Display Systems (KDS) in QSR and hospitality
• Quick service restaurant counters
• Logistics and inventory management terminals

Technical specifications

• System information
  • PE24: Intel® Elkhart Lake Celeron. 1 x SO‑DIMM DDR4 slot, 8GB standard, up to 16GB.
  • PE26: Intel® Alder Lake‑P / U platform — supports Core i7 (up to 4.7 GHz, project based), Core i5 (up to 4.4 GHz), Core i3 (up to 4.4 GHz). 1 x SO‑DIMM DDR5 slot, 8GB standard, up to 32GB.
• Intel® AMT
  • Supported on i5/i7 configurations where applicable.
• TPM
  • Intel® F/W TPM 2.0.
• Display & Touch
  • 21.5 in Full HD (1920 x 1080), 250 cd/m², LED backlight.
  • 10‑point PCAP multi‑touch.
• Storage
  • PE24: 1 x M.2 PCIe SSD.
  • PE26: 1 x M.2 PCIe SSD or 2 x 2.5" SSD (RAID 0/1, project based).
• Expansion
  • 1 x M.2 E Key (Wi‑Fi/BT project based).
• Connectivity
  • 3 x USB 2.0, 3 x USB 3.1.
  • 2 x RJ‑48 COM ports (configurable DC levels via BIOS).
  • 1 x USB Type‑C (DP + PD).
  • 1 x RJ45 Gigabit Ethernet (10/100/1000M, WOL, PXE).
  • 1 x RJ11 (supports DC+12V or 24V default) for 2 cash drawers.
  • 1 x 4‑pin DIN with lock for DC‑IN.
• Audio
  • 2 x 2W speakers.
• Power requirement
  • Input: 100 – 240 Vac, 50 – 60 Hz.
  • Output: DC +19V, 90W AC‑DC adapter.
• Mechanical & Construction
  • Front panel: IP65.
  • Fanless system.
  • Weight (NW/GW): 5.7 kg / 7.5 kg.
  • Dimensions (W x H x D): 510.6 x 307.2 x 64.79 mm.
  • Mounting: Wall / Pole / VESA 100 x 100.
  • Construction: Aluminum frame with sheet metal chassis.
• Environmental
  • Operating: 0 °C to 40 °C, 10% – 90% RH non‑condensing.
  • Storage: ‑20 °C to 60 °C, 10% – 90% RH non‑condensing.
• Certification
  • CE / FCC / LVD.
• OS Support
  • Windows 10/11 (64‑bit), Linux (e.g. Ubuntu 22.04).
