Manual fire nozzle

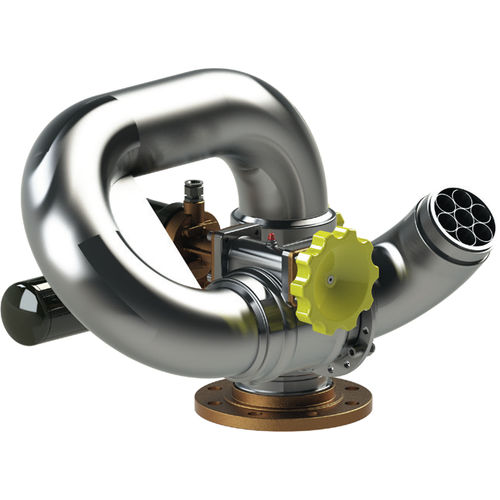

Our DN100 motorised monitor in stainless steel is designed following ATEX rules (antiexplosive). The horizontal and vertical movements are possible through two powerful electric motors backed up by two safety handwheels. Vertical adjustments from 90º to -90º and elevation adjustments are possible over 340º (by steps of 25º). The pipe of this monitor includes an inside stream steper made of seven elements which enables to get a higher range and a better quality of the stream pattern. Maximum working pressure: PN16 Material: stainless steel et bronze Horizontal movement: from -170° to +170° Horizontal adjustment: motorised and spare handwheel Vertical movement: from -90° to +90° Vertical adjustment: motorised and spare handwheel Speed: 9°/s Power supply: 24V CC
