Multi-tier industrial mezzanine

with racking systempallet rackfor pallet

POLYPAL mezzanines are modular mezzanine floor systems designed to expand warehouse area without the need for construction works. They take advantage of the warehouse height to increase usable surface and volume for storage, order picking, offices or changing rooms.

Key features

• Modular, fully bolted system for fast, clean installation and easy modification, expansion or relocation.
• Can be supported on independent columns or integrated on top of a racking/shelving system.
• Designed for industrial use and multilevel configurations, enabling circulation of handling equipment (manual or powered pallet trucks) on the mezzanine.
• Suitable where civil works or on-site welding/cutting are not allowed (mezzanine on columns option).
• Removable and reconfigurable construction for future changes.
• 5 years warranty (manufacturer information).

Mezzanine on columns
This configuration is ideal when structural modifications or operations such as welding are prohibited. It is engineered to support large uniformly distributed loads from 300 kg/m² up to 1500 kg/m². Column spacing can range from a few metres to spans of 10 m or more, depending on layout and load requirements.

Mezzanine on shelves
This solution creates a clear mezzanine area with a racking or shelving structure underneath destined for manual light-duty storage. Common shelving models used under open mezzanines include:

• pallet racking
• medium-duty shelving / picking racks

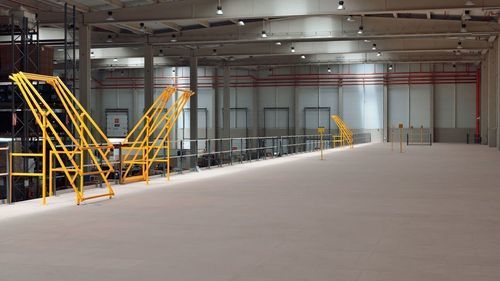

Safety pallet gates
Protection devices designed to secure loading/unloading points on mezzanines, ensuring a handrail or barrier is present when pallets or goods are placed or collected. Typically manually operated, adaptable to different pallet sizes and finished in safety yellow epoxy.

Technical specifications

• Brand: POLYPAL
• Support options: independent columns or shelving/racking support
• Load capacity (mezzanine on columns): 300 kg/m² to 1500 kg/m²
• Load capacity (mezzanine on shelves): 300 kg/m² to 1000 kg/m²
• Assembly: completely bolted, modular and removable
• Span capability: column spacing from a few metres up to 10 m or more
• Typical applications: storage, picking, offices, changing rooms
• Special features: no civil works required for column option; allows circulation of handling equipment on mezzanine
• Warranty: 5 years (manufacturer information)
