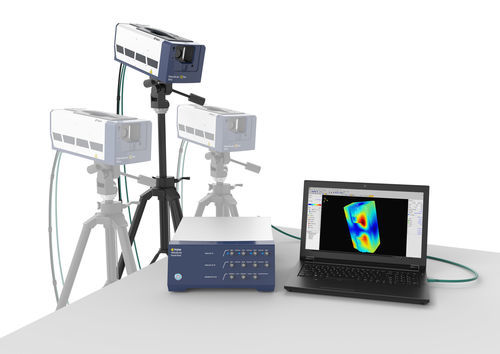

Non-contact vibrometer VibroScan QTec 3D

for machine monitoringturbinefor environmental measurements

Modal testing, analysis of vibration / acoustics / dynamics or FE model validation of your research and development projects? VibroScan 3D is the new class of laser scanning vibrometers boosting your ideas! VibroScan QTec Xtra 3D measures 3D vibration and dynamics in a new way - non-contact and with unprecedented precision. Using patented multi-channel interferometry and Diversity Combining, QTec® sets new standards in regard to the best optical sensitivity for faster, clearer measurement data. The hub synchronizes the vibrometers within picoseconds. MIMO-capable signal generators are included. The proprietary software automatically detects the position of the single sensor heads and synchronizes the lasers in a μm-fine measuring point for exact scanning of the measurement object. The results are automatically transformed into the FEM coordinate system and visualized as an animated deflection shape. Use VibroScan QTec Xtra 3D for precise determination of operational vibration modes and Eigenmodes for NVH, acoustics, structural dynamics, ultrasonic testing, for validating your FE models or for non-destructive testing (NDT) on a wide frequency range up to 32 MHz. With its SWIR (short wave infrared) wavelength, the Xtra laser technology adds power to the measurement. In combination with the unique QTec® technology it makes the Xtra Laser insensitive to challenging angles and surface reflectivity, which significantly enhances 3D measurments. The VibroLink Ethernet data interface smoothly transmits the measurement data to your notebook and also serves as automation interface. Demo or flexible financing? Find out more about the measurement technology and PolyFlex services (measurement service, rental, leasing)!
