Network analyzer PNS630

signalfor testingflow

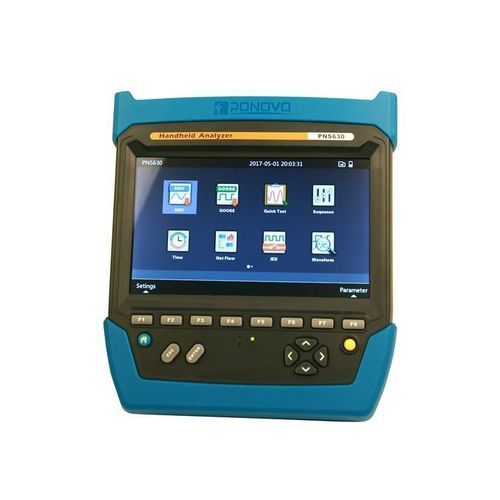

PNS630 hand-held IEC61850 network analyzer is designed for digital substation commissioning testing and maintenance. PNS630 hand-held IEC61850 network analyzer is designed for digital substation commissioning testing and maintenance. It is equipped with 4 pairs of fiber optic/Ethernet(flexible) ports, 4 pairs fiber serial ports, 1 pair of Binary input and 1 pair of Binary output, built-in battery for long-time operation for 12 hours,and all programme in TF card, which is very easy to upgrade firmware and software. It is very convenient and portable network analyzer that with a 10.8inch touch screen so that engineer can take it only to different places in the substation for checking IEDs, no need to take complicated test sets and laptop, and other testing accessories. PNS630 is with has more than 11 testing modules for basic relay testing, different MU testings, SV/GOOSE sending and receiving, analysis, SCD file import and analysis,etc. PNS630 could be used for testing other IEDs in digital substation as a multiple-functional tool, including sending and receiving GOOSE, SV, add traffic flow to the switch or other IEDs, check the MU time delay, measure the fiber power of fiber ports, etc. It also support time synchronization with other IEDs via PTP/IEEE1588, IRIG-B code, PPS signal.
