Protection relay test kit PW636i-F

electricPC-controllablefor electric energy meters

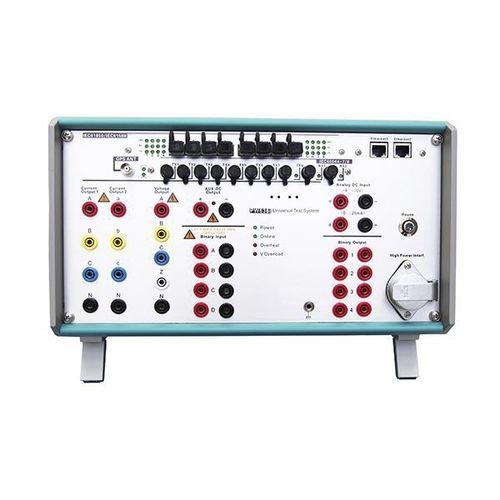

PW636i-F (6×32A, 4×300V, 8 fiber optic ports) is the new generation of PW series relay test set which can be used both as an conventional relay test kit and IEC61850 testing tools. PW636i-F (6×32A, 4×300V, 8 fiber optic ports) is the new generation of PW series relay test set which can be used both as an conventional relay test kit and IEC61850 testing tools. It is equipped with 6 current output, each channel 32A/450VA output, 4 voltage output, each channel 300V/75VA output, 12 binary inputs, 8 binary outputs, 12 low-level outputs, low-level analog inputs, Aux. 0-300V, which can be used all kinds of conventional relay testings, from electromagnetic relays to microprocessor computer relays, and IEC81650 digital relays. It not only has current and voltage outputs for all kinds of conventional relay testings, but also has 8 switchable optical fiber/Ethernet ports to support digital relay protection tests based on IEC61850. It can send and receive SV, simulate MU to send SV to relay which the dispersion is better than ±80ns, receive SV, realizing self-loop test. It can publish and subscribe GOOSE message, many different kinds control/block messages, simulate the abnormal message (jitter, frame loss, flying spot, wrong sequence, data anomalies, packet retransmission, channel invalid, out of step, etc.), receive and send IEEE1588(PTP) message, provide flexibility to configure both SV &GOOSE ports independently and measure received fiber optical power. Besides, relay testings, PW636i can be used for other test works as well, such as transducer, energy meter, indication meter, etc. It's the ideal protection relay test kit for all power utilities, power plants,
