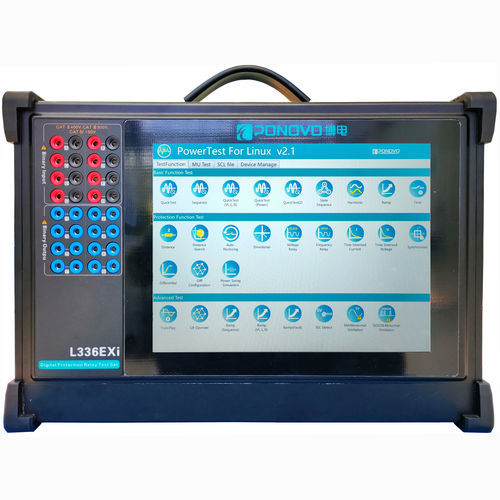

Electric test set L336EXi

for power transformerslaboratoryfor electrical machines and installations

L336EXi Series Super-Light Digital Protection Relay Test Set is new generation of L336i series portable relay testing equipment launched by PONOVO. The weight of the whole machine is approximately 9kg. It has 4 models, L336EXi, L336EXi-E, L336EXi-B and L336EXi-H. It is equipped with analog current and voltage output channels, and fiber digital output capability, which could be used for testing any type of relays from electromagnetic relays, numerical relays, microcomputer relays, and digital relays based on IEC61850. Features *Super light design, only 9kg, 1/3 of the weight of traditional testing system. *4 models optional, equipped with multi current output and voltage output channels, high power output for different kinds of relay testing and stable signal output with high accuracy. *Equipped with 8 fiber optic ports for different digital relay testing. Combined full IEC61850 function, support digital quantity include SV, FT3 can be sent and received, and GOOSE can be published and subscription. *Embedded with 10.4inch touchscreen for local operation and also support external PC control by PowerTest Int V7.0 software. *Internal digital recorder for monitoring and recording test process. *Built-In WIFI for wireless connection to PC. *Built-in GPS, support IRIG-B and IEEE1588(PTP) Synchronization. 4 Models L336EXi, 6*20A, 6*130V, 8 pairs of optical Ethernet ports, external power supply. L336EXi-H, 6*20A, 4*300V, 8 pairs of optical Ethernet ports, external power supply. L336EXi-E, 4*20A, 4*300V, 8 pairs of optical Ethernet ports, external power supply. L336EXi-B, 6*20A, 6*130V, 8 pairs of optical Ethernet ports, support both battery power supply and external power supply. Applications L336EXi series support voltage and current output, binary input and output, SMV sending and receiving and GOOSE publish and subscription, can test secondary devices such as traditional or digital substation protection relay and measurement and control devices.
