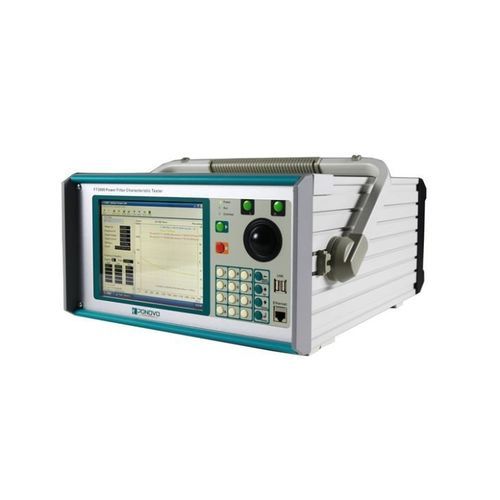

Filter tester FT3000

high-voltageresistanceAC

FT3000 HVDC Power Filter Characteristic Tester has the functions of automatic sweep harmonic signal output, A-F and P-F characteristic measurement/display etc. It can perform HVDC Power Filter Testing and is mainly used in AC filter of DC convertor station, DC filter tuning characteristics test and parameter test of R, L and C. It is also used in electrified railway HV filter, passive power filter client and conventional AC substation reactive compensation device. It is mainly used to test the power filter and power filter of UHV converter station, the shunt capacitor bank of the substation, the electrified railway high voltage filter, the harmonic control of the industrial user, the debugging and maintenance of the reactive power compensator. • Amplitude-frequency characteristic and phase-frequency characteristics • Inductance value of reactor • Capacitance value of capacitor • Resistance value of resistor • Unbalanced current of filter bank H bridge • Automatically display the A-F characteristic curve • Automatically generate the test report in word format • Automatically generate the test report in word format • Field test accuracy can reach 0.5% • Measure capacitance without unfasten the capacitor banks
