Current testing device PCT200X

voltageelectricelectrical resistance

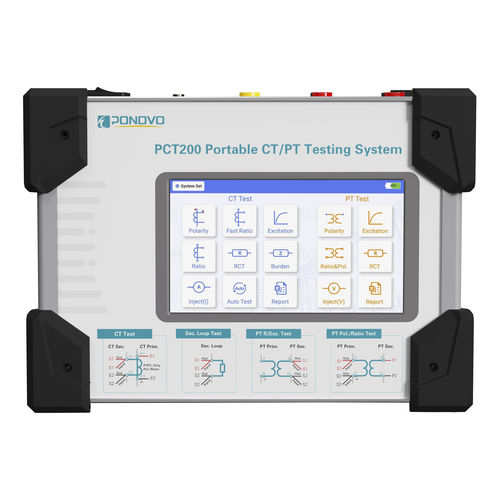

PCT200X Portable CT/PT Testing System (CT PT analyzer)-Battery Supply Type is a test equipment specially designed for current transformer and voltage transformer characteristic test. The test set can finalize various testing functions and support IEC, IEEE and IS standards. With built-in testing software in its local 7-inch touch screen, all test items can be completed automatically after pressing the Run key and generating Excel and PDF reports. The built-in battery can complete a day's duty of testing after being fully charged. It suits the testing required in research institutes, labs, manufacturers, power utilities, power supply and debugging companies, etc.

Product Features
• Can test M/P/TP/PS/PX/PXR type, bushing and GIS type CT.
• Ratio check up to 1:1-50000:1 and 5:5-50000:5, ratio and phase accuracy to class 0.1 and more.
• Knee point/Excitation The knee voltage ranges from as low as 1V to as high as 45kV.
• 7-inch built-in touch color screen, all test items can be completed automatically after press Run key.
• Test results saved in Excel, Word, PDF format, and CT test result can be evaluated automatically.
• More than 100,000 reports can be saved in its local storage, and support readback of stored data.
• Standards: IEC60044-1/6, IEC61869-2, ANSI/IEEE C57.13, IS2705
• Guess nameplate function, include CT type, class, ratio, knee point, power factor, etc.
• Support control through mobile phone and tablet
• Sliding operation to switch parameters and test pages
• Weight: 4kg
