Programmable electronic load

AC/DCCANRS-485

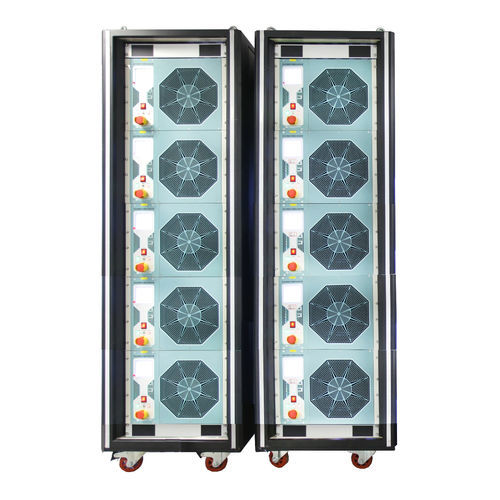

PADL series programmable AC and DC load can be used for both AC charging pile testing and DC charging pile testing. The device adopts modular design and is installed in a standard cabinet. The load module can be used alone or in parallel as needed. It can simulate the charging working conditions of new energy vehicles under different charging modes. Using mature load testing technology, the system design has the characteristics of high performance, high reliability, high efficiency, and easy maintenance. It is currently a product with leading domestic and international technical performance. Product Features •DC rated current 100A@300Vdc, DC rated power 30kW@330-1000Vdc •AC rated current 68.42A@220Vac, AC rated power 15kW@220Vac •Can be used in parallel according to test needs •2 model PADL option for cooling air flow: air flow from front to rear or from rear to front •Intelligent, highly automated, programmable design •High precision, high integration, fast response •Different installation forms, can be installed in cabinets, in vehicles and bottom with wheels Software main interface In the main interface, can control and monitoring operation mode and operation state Local / Remote displays PADL in local control or remote control on PC Operation state displays PADL is in standby state, pickup state, running state or fault state. Operation mode can be display and setting in main interface, including constant voltage, constant current mode and constant resistance mode Master / Slaver display current load set itself is master or slaver AC / DC mode, load voltage, load current, load power can be display and setting in main interface
