Pressure test unit M07
Add to favorites
Compare this product
Description
Product Description
Typical Test Specimens
Standards and Norms
Performance Data
Additional Features
Further Information
Technical Specifications (Summary)

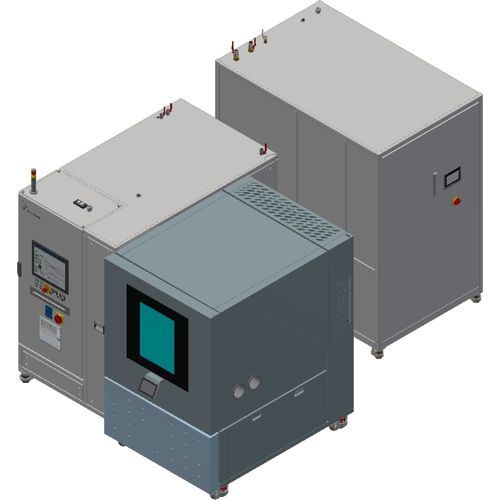

- The M07 test stand by Poppe + Potthoff is a modular test system designed to validate liquid cooling components under realistic temperature and pressure conditions.
- Developed for applications in the automotive and electronics industries, the system meets international standards such as VW80000 and GS 95024-3-1.
- Enables precise pressure change tests, overpressure tests, and vacuum tests at temperatures from -40°C to +90°C.
- With intelligent control, integrated recipe management, and interfaces to climate chambers and chiller units, the test stand is ideal for endurance tests with up to 200,000 pressure cycles.
- The powerful software with data recording, error messaging, and user management ensures efficient, safe, and documentable test processes.
Typical Test Specimens
- Cooling circuits or cooling plates of electronic control units (ECUs)
- Cooling systems of high-voltage coolant heaters
- Battery housings, battery cooling systems
- High-voltage water heaters, PTC heaters, heat exchangers, low-temperature coolers, and more
Standards and Norms
- VW80000
- GS 95024-3-1 (2019-08, 2024-02)
- LV124
Performance Data
- Pressure change test: 0.5 to 4.5 bar abs
- Test pressure: 4.5 ± 0.05 bar abs (1h)
- Test pressure (vacuum test): 0.01 bar abs (30min, without medium)
- Medium: Water / Ethylene glycol (Freezium)
- Frequency (Hz): 25-35 cycles/min
- Number of cycles: 200,000
- Temperature range: -40°C to 90°C
- Cooling capacity (example): up to 22kW (at 0°C); up to 4kW at -40°C
- Heating capacity: 24kW
- PLC: S7-1500 with Profibus
- Software: Labview interface with recipe management
Additional Features
- Integrated interfaces to climate chambers and chiller units
- Intelligent control and recipe management
- Endurance tests with up to 200,000 pressure cycles
- Efficient, safe, and documentable test processes
Further Information
- The M07 is also referenced in: GS 95024-3-1, 8.7 2019-08, GS 95024-3-1, 2024-02, LV124, and VW8000.
Technical Specifications (Summary)
- Pressure range: 0.5 to 4.5 bar abs
- Test pressure: 4.5 ± 0.05 bar abs (1h)
- Vacuum test: 0.01 bar abs (30min, without medium)
- Medium: Water / Ethylene glycol (Freezium)
- Frequency: 25-35 cycles/min
- Number of cycles: 200,000
- Temperature range: -40°C to 90°C
- Cooling capacity: up to 22kW (at 0°C); up to 4kW at -40°C
- Heating capacity: 24kW
- PLC: S7-1500 with Profibus
- Software: Labview interface with recipe management
