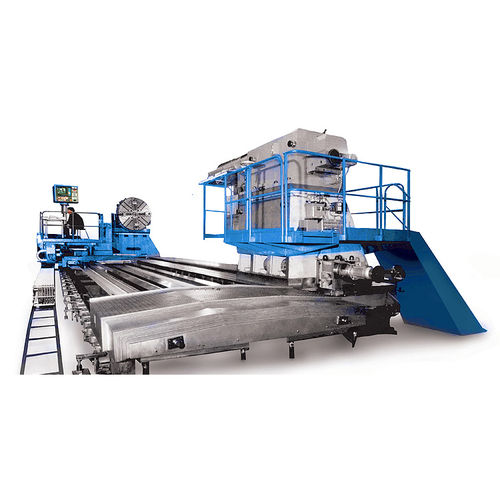

CNC turning center TZL 420
for shaft machiningfor large workpiecesfor large-diameter parts

Add to favorites

Compare this product

Go to the PORĘBA Machine Tools website for more information

Characteristics

Control type

CNC

Applications

for shaft machining, for large workpieces, for large-diameter parts

Other characteristics

milling, drilling, 4-guideway

Diameter

Max.: 4,200 mm
(165.35 in)

Min.: 700 mm
(27.56 in)

Spindle speed

Max.: 100 rpm
(628.319 rad.min-1)

Min.: 0.3 rpm
(1.885 rad.min-1)

Rapids on X

4,000 mm/min
(3 in/s)

Rapids on Z

4,000 mm/min
(3 in/s)

Nominal power

150 kW, 200 kW
(203.9 hp, 271.9 hp)

Description

In its basic version the TZL 420 horizontal centre lathe – thanks to the innovative mechanical solutions and advanced control systems – is a multi-purpose lathe that guarantees productive rough and finish machining. The TZL 420 CNC lathe is designed for workpiece machining in the range of turning in accordance with the machine tool specifications, especially machining of large-size shafts and large-diameter workpieces. When delivered with special equipment it can operate as horizontal machining centre with turning, drilling and milling capabilities. It can be equipped with an automatic tool head, tool and workpiece measuring systems, controlled C axis, workpiece steady rests. CONTROL SYSTEM The application of the state-of-the-art CNC system allows for automatic, precise and productive workpiece machining according to a program.
