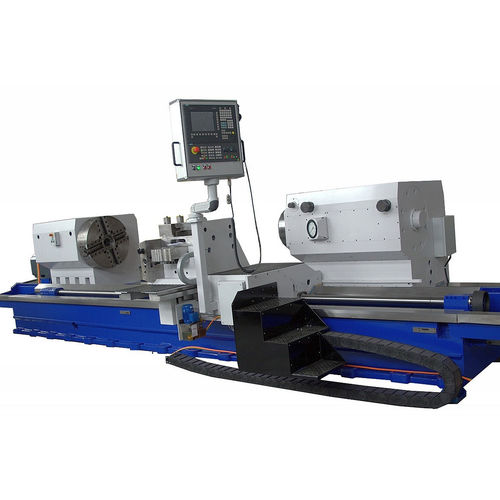

Large part lathe THG series
CNChorizontal2-axis

Add to favorites

Compare this product

Go to the PORĘBA Machine Tools website for more information

Characteristics

Control type

CNC

Spindle orientation

horizontal

Number of axes

2-axis

Applications

for large parts

Other characteristics

high-precision, high-productivity, high-rigidity

Diameter

800 mm, 1,250 mm
(31.5 in, 49.21 in)

Spindle speed

Max.: 315 rpm
(1,979.203 rad.min-1)

Min.: 0.5 rpm
(3.142 rad.min-1)

Rapids on X

2,500 mm/min
(2 in/s)

Rapids on Z

4,000 mm/min
(3 in/s)

Nominal power

71 kW, 75 kW
(96.5 hp, 102 hp)

Overall lenght

3,550 mm
(140 in)

Overall width

2,600 mm
(102 in)

Overall height

2,300 mm
(91 in)

Weight

33,000 kg, 34,000 kg
(72,753 lb, 74,957 lb)

Description

High ridigity of THG roll lathes makes it possible to turn the rolls of high hardness providing high productivity during rough machining and high accuracy during finishing operations. Special design of guideways for carraige and cross-slide travels ensures vibration-free operation at high torque and low cutting speed. The THG series lathes are designed for workpiece machining in the range of turning in accordance with their specifications, especially for machining and calibration of rolls used in steel industry. CONTROL SYSTEM The application of the state-of-the-art CNC system allows for automatic, precise and productive workpiece machining according to a program.
