EC motor 22ECP60 Ultra EC series
DC24 Vslotless

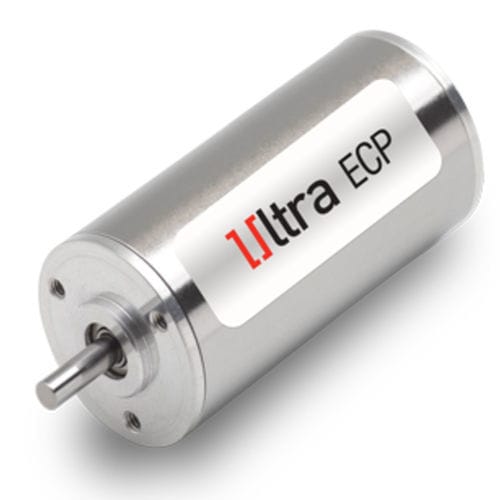

EC motor - 22ECP60 Ultra EC series - Portescap S.A. - DC / 24 V / slotless
EC motor - 22ECP60 Ultra EC series - Portescap S.A. - DC / 24 V / slotless
Add to favorites
Compare this product

Characteristics

Type
EC, DC
Voltage
24 V
Configuration
slotless, miniature
Number of poles
2-pole
Applications
for medical equipment, for robotics, for power tools
Other characteristics
custom, high-torque
Power

120 W
(0.16 hp)

Intensity

1.8 A

Torque

0.0505 Nm
(0.037247 ft.lb)

Rotational speed

Max.: 38,000 rpm
(238,761.0417 rad.min-1)

8,050 rpm
(50,579.6417 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Diameter

22 mm
(0.87 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Description

The ECP line of miniature motors are ultra cost optimized without compromising on premium performance. The 22ECP60 provides high continuous and peak torques with limited core losses over a wide range of working speeds, and without friction or brush wear. With the 22ECP60, you can get the right balance between torque and speed to suit most applications Product Highlights • 2 poles slotless • With or without hall sensors • 2 standard lengths available • Proprietary high efficiency coil design • Maximized performance/price ratio Customization Available • Coil modifications - resistance and inductance • Connectors • Custom shafts - flats, knurling, diameter, length Applications • Medical Analyzers • Humanoid Robot • Material Handling • Pick & Place • Seat Actuation • Power Hand Tools
