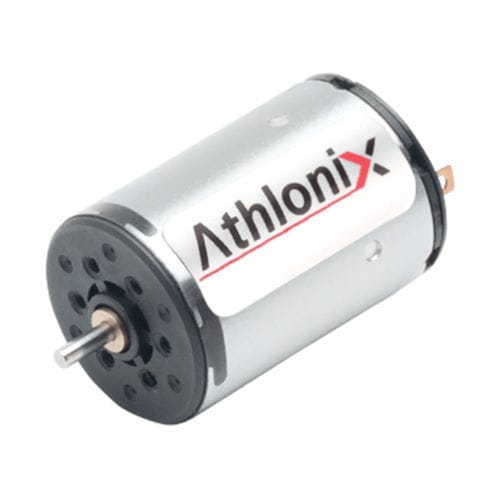

DC motor 16DCT Athlonix series
brushed6 V3 V

DC motor
DC motor
Add to favorites
Compare this product

Go to the Portescap S.A. website for more information

Characteristics

AC/DC
DC
Type
brushed
Voltage
6 V, 3 V, 9 V, 24 V, 12 V, 48 V, 18 V
Configuration
permanent magnet, ironless, compact, miniature
Applications
for medical equipment, for robotics, for dispensers
Other characteristics
high-torque
Power

4 W, 4.1 W, 4.2 W, 4.3 W
(0.005 hp, 0.006 hp, 0.006 hp, 0.006 hp)

Intensity

Max.: 1.53 A

Min.: 0.1 A

Torque

Max.: 0.0054 Nm
(0.004 ft.lb)

Min.: 0.0051 Nm
(0.0038 ft.lb)

Rotational speed

Max.: 10,079 rpm
(63,328.22 rad.min-1)

Min.: 7,968 rpm
(50,064.42 rad.min-1)

Diameter

16 mm
(0.63 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Description

The new generation 16mm Athlonix motors feature a Neo magnet inside. The 16DCT Athlonix miniature dc motor, with precious metal commutation, can deliver a torque up to 5.24mNm and optimal price-performance options. Product Highlights • Ironless construction • Neodymium magnet for high performance • Precious metal commutation • Compact design • Winding possibilities • REE windings to reduce electro erosion Customization Available • Cable or terminal outputs • Coil modifications - resistance and inductance • Custom shafts - flats, knurling, diameter, length • Fixation holes • Sleeve or ball bearings Applications • Dosing and Dispensing Systems • Clinical Diagnostics • Medical Analyzers • Gas Detection and Personal Safety • Electronic Access Systems • Humanoid Robot • Automated Watch Winder • Rotary Tattoo Machine Motors • Mesotherapy Guns • Dental Hand Tools
