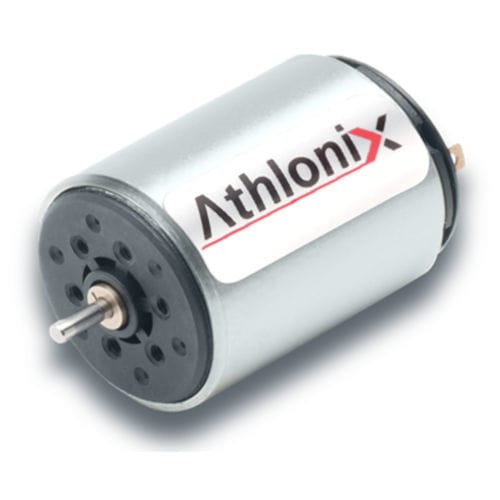

High-torque motor 17DCT 26G1/G2 series
brushedDC24 V

High-torque motor - 17DCT 26G1/G2 series - Portescap S.A. - brushed / DC / 24 V
High-torque motor - 17DCT 26G1/G2 series - Portescap S.A. - brushed / DC / 24 V
Add to favorites
Compare this product

Characteristics

Type
brushed, DC
Voltage
24 V, 12 V, 48 V, 36 V, 18 V, 6 V, 3 V, 9 V
Configuration
permanent magnet, ironless, compact, mini
Applications
for medical equipment, for robotics, for dispensers
Other characteristics
custom, high-torque, high-power
Power

4.1 W, 4.3 W, 4.4 W, 4.5 W, 4.6 W
(0.01 hp, 0.01 hp, 0.01 hp, 0.01 hp, 0.01 hp)

Intensity

Min.: 0.11 A

Max.: 1.54 A

Torque

Min.: 0.0053 Nm
(0.003909 ft.lb)

Max.: 0.0059 Nm
(0.004352 ft.lb)

Rotational speed

10,000 rpm
(62,831.8531 rad.min-1)

Diameter

17 mm
(0.67 in)

Operating temperature

Min.: -30 °C
(-22 °F)

Max.: 100 °C
(212 °F)

Description

With a design combining high power density and carbon brush commutation, the Athlonix 17DCT brush dc mini motor can deliver a max continuous torque up to 5.88 mNm. These high torque motors are tailored for the most demanding applications. Product Highlights Ironless construction Neodymium magnet for high performance Carbon brush commutation Long brush life Compact design Winding possibilities REE windings to reduce electro erosion Customization Available Cable or terminal outputs Coil modifications - resistance and inductance Custom shafts - flats, knurling, diameter, length Fixation holes Sleeve or ball bearings Applications Automated Watch Winder Dental Hand Tools Diagnostic Analyzers Dosing and Dispensing Systems Electronic Access Systems Gas Detection and Personal Safety Humanoid Robot Medical Analyzers Mesotherapy Guns Rotary Tattoo Machine Motors
