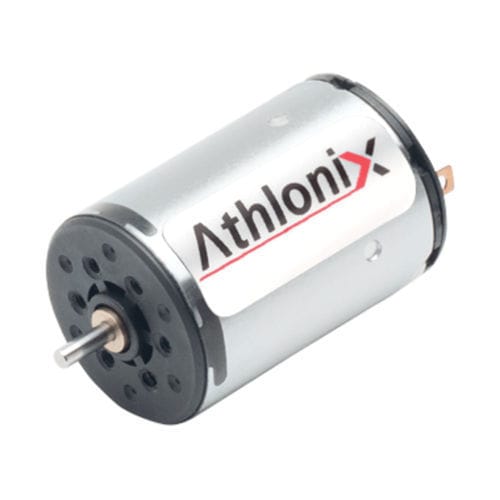

DC motor 16DCP Athlonix series
brushed6 V3 V

DC motor
DC motor
Add to favorites
Compare this product

Go to the Portescap S.A. website for more information

Characteristics

AC/DC
DC
Type
brushed
Voltage
6 V, 3 V, 9 V
Configuration
permanent magnet, ironless, compact, mini
Applications
for medical equipment, for dispensers
Power

1.3 W, 1.4 W
(0.002 hp, 0.002 hp)

Intensity

Max.: 0.73 A

Min.: 0.09 A

Torque

Max.: 0.0026 Nm
(0.0019 ft.lb)

Min.: 0.0024 Nm
(0.0018 ft.lb)

Rotational speed

Max.: 10,000 rpm
(62,831.85 rad.min-1)

Min.: 7,727 rpm
(48,550.17 rad.min-1)

Diameter

16 mm
(0.63 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Description

The 16DCP precious metal Athlonix motors feature a alnico magnet. These brush dc mini motors can deliver a torque up to 2.63 mNm. 16DCP Athlonix motors offer a price to performance solution ideal for a broad spectrum of applications. Product Highlights • Ironless construction • Alnico magnet for high performance • Precious metal commutation • Long brush life • Compact design • Winding possibilities • REE windings to reduce electro erosion Customization Available • Cable or terminal outputs • Coil modifications - resistance and inductance • Custom shafts - flats, knurling, diameter, length • Fixation holes • Sleeve or ball bearings Applications • Dosing and Dispensing Systems • Diagnostic Analyzers • Medical Analyzers • Motors for Medical Pipettes • Gas Detection and Personal Safety • Electronic Access Systems • Rotary Tattoo Machine Motors • Automated Watch Winder • Mesotherapy Guns • Dental Hand Tools
