Disc magnet motor PH010 104 seriesDCsteppersmall
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- stepper
- Configuration
- disc magnet, small
- Applications
- for medical equipment
- Other characteristics
- high-speed
- Intensity
Min.: 0.17 A
Max.: 0.62 A
- Torque
0.001 Nm
(0.0007 ft.lb)- Diameter
10 mm
(0.39 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 50 °C
(122 °F)
Description

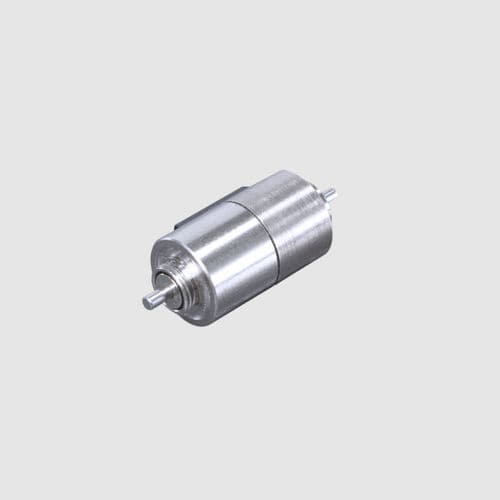

The PH010 104 disc magnet stepper motor provides exceptional dynamic performance unparalleled by any other small diameter stepper in the market. The unique thin disc magnet enables finer step resolutions in a given envelope.
Product Highlights
• Precise - well suited for microstepping
• Fast - disc magnet enables fastest acceleration and highest top speed of any step motor while maintaining accurate positioning
• Unique - low detent torque and highly customizable
• Adaptable - higher steps per revolution than similar diameter steppers
Customization Available
• Coil modifications - resistance and inductance
• Custom shafts - flats, knurling, diameter, length
• Encoders for position verification
• Gearheads for increased torque
• Lead screw shafts
• Sleeve or ball bearings
• Wiring - connectors, lead length, shrink tubing
Applications
• Motors for Medical Pipettes
• Clinical Diagnostics
• Instrumentation
• Barcode Scanners
• Optical Attenuators
