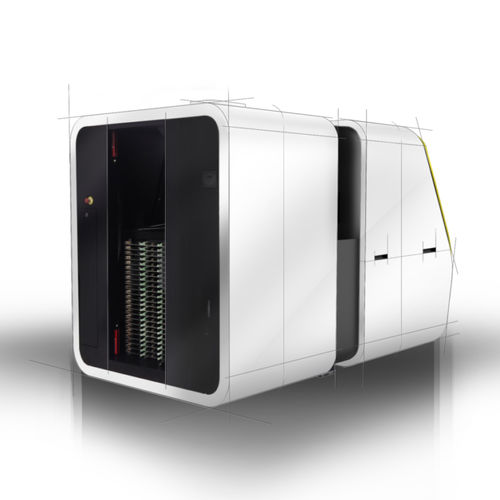

3-axis CNC machining center PCB
verticaldrillingrigid

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Applications
drilling
Other characteristics
rigid, with linear motor

Description

Innovative and ergonomic design One, two, three, and six stations available in single, combi, or dual version X, Y and Z axis with linear motor drives Workpiece format : 635 x 724 mm (25″ x 28.5″) XY individual technology available on TRIO model (workpiece format : 610 x 724 mm – 24″ x 28.5″) Choice from an extensive range of drilling, routing or combination spindles Spindle speed range from 5’000 to 350’000 rpm Tool management system with chain, Asian Tool Change (ATC) and cassette New Posalux CNC 5000 – Powerful digital servo drives for rigid axis control Advanced concept of Z-axis unit – Increased stiffness, reduced mass New generation of multi-inserts pressure pad (IPF3) for drilling and routing Second measuring system for a perfect surface detection in controlled depth routing Standard and customized clamping systems CCD camera for registration Automation – individual loader with up to 22 levels
