Rotary encoder magnetic ring TPCD07

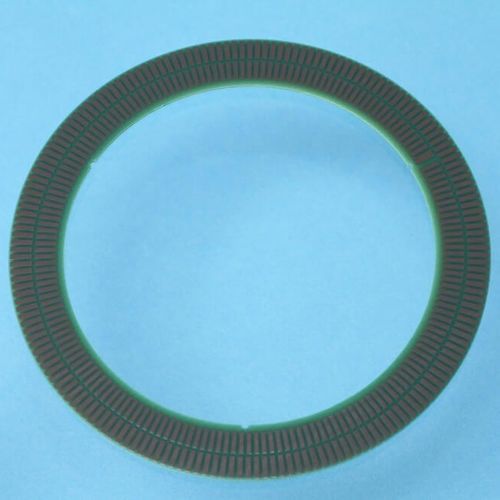

Dual-track codewheel with 180 periods for ID and IT rotary encoders. The codewheel consists of a PCB with copper patterns on the front side and with a plain copper surface on the backside. The backside copper layer acts as a screen against metallic structures behind the codewheel. The codewheel can thus be mounted on a metallic or non-metallic hub. The codewheel contains 3 half-holes with diameter 1 mm that can be used for alignment. Number of periods 180 Outer diameter 76.2 mm Inner diameter 56 mm Readout Radius 32.53 mm Thickness 0.73 mm
