Incremental linear encoder ID4506L

magneticinductivedigital

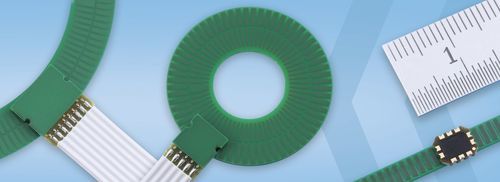

Features: - Highly miniaturized: 5 x 6 x 0.8 mm - Outputs A quad B - Robust against oil grease, liquids, dust, particles - Programmable resolution and max speed - Optional with holder, cable and connector The ID4506L incremental encoder kit consists of an encoder and a linear scale. The encoder is an integrated circuit in a PCB housing. It provides incremental A and B output signals in quadrature. The linear scale is a PCB with passive copper strips. The resolution and the maximum speed of the encoder are user-programmable or can be programmed ex-factory. Key Specifications: - Output signals: A quad B - Resolution: down to 20 nm - Scale speed: 0 up to 64 m/s - A/B frequency: 0 up to 2 MHz - Supply: 5V, 15 mA - Temperature: -10 to 85°C - Airgap: 0.1 – 0.6 mm
