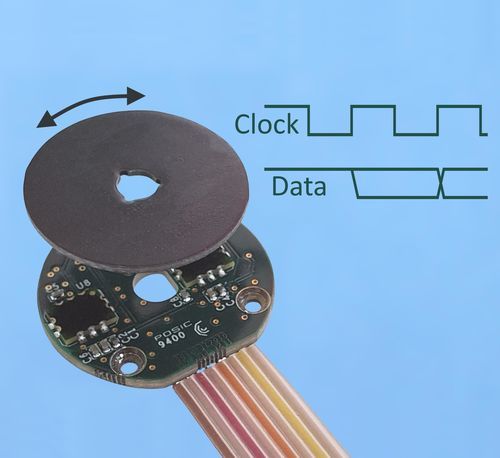

Absolute rotary encoder AP9400Cinductive23-bitsingle-turn
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- inductive
- Absolute encoder resolution
- 23-bit
- Construction
- hollow-shaft, single-turn, non-contact
- Output signal
- SSI
- Supply voltage
- 5VDC
- Protection level
- standard, rugged
- Applications
- industrial, for motors, for OEM, for harsh environments, for elevators, for robotics, for handling systems
- Other characteristics
- compact, high-resolution, miniature, programmable, for motor feedback, bearingless, modular
- Flange size
23 mm
(1 in)- Housing diameter
25.5 mm
(1 in)- Shaft diameter
4.1 mm
(0.16 in)- Length
5 mm
(0.197 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 23,000 rpm
(144,513 rad.min-1)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)
Description
POSIC launches the miniature rotary absolute encoder kit AP9400C, which provides the absolute position in SSI format with a 22-bit resolution and a maximum speed up to 20’000 RPM. The highly miniaturized encoder measures only 25.5 mm in diameter. With a disc-thickness of 0.7 mm, the overall profile height is 5 mm.
A self-calibration method allows the elimination of eccentricity as well as the compensation of mechanical tolerances.
Due to its inductive sensing principle, the encoder is robust against dust, particles, oil, grease, liquids and it is even immune against magnetic fields. This means that it can be integrated inside an electric motor or magnetic actuator without any magnetic shielding.
Target markets include amongst others robotics, e-mobility, autonomous vehicles, industrial automation, semiconductor equipment, drones, electric motors and rotary stages.
A self-calibration method allows the elimination of eccentricity as well as the compensation of mechanical tolerances.
Due to its inductive sensing principle, the encoder is robust against dust, particles, oil, grease, liquids and it is even immune against magnetic fields. This means that it can be integrated inside an electric motor or magnetic actuator without any magnetic shielding.
Target markets include amongst others robotics, e-mobility, autonomous vehicles, industrial automation, semiconductor equipment, drones, electric motors and rotary stages.
