Straight connector GAP Serieselectrical power supplyPCBrectangular
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- PCB
- Shape
- rectangular, straight
- Connection type
- male, locking
- Electrical characteristics
- multipole, heavy-duty
- Material
- plastic, aluminum
- Product applications
- instrumentation, rack, control
- Domain
- industrial, for aerospace applications, medical, avionics, for heavy-duty applications
- Other characteristics
- panel-mount, rugged
- Primary current
7.5 A
- Voltage
250 V
Description

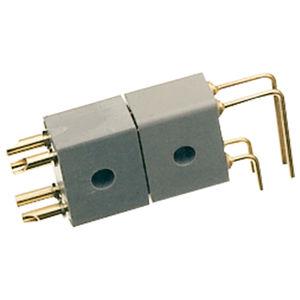

The GAP series is part of the Rugged Rack & Panel family of robust connectors for rack & panel applications. GAP series connectors offer straight solder termination option.
GAP Series connectors are heavy-duty, multi-pole, low profile, high reliability connectors. Contacts are male only with 0.062 inch [1.57mm] diameters, rated to 7.5 amperes per contact. Termination style is straight solder printed board mount. GAP Series connectors are intermateable with Positronic GMCT Series connectors.
A wide array of mounting, locking and polarizing accessories is available for this series. For details, see the Heavy-Duty Rectangular Connector Accessories section. Due to its printed board mount termination style, and its 0.062 inch [1.57mm] diameter contacts, the GAP Series is ideal for heavy-duty applications found in avionics, medical equipment, telecommunications, instrumentation and process control applications.
