Rectangular connector SGMC Serieselectrical power supplystraightfemale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- rectangular, straight
- Connection type
- female, crimp
- Electrical characteristics
- multipole, high-density
- Material
- plastic
- Product applications
- rack
- Domain
- industrial, for military applications, for aerospace applications
- Other characteristics
- panel-mount, mini
- Primary current
5 A
- Voltage
250 V
Description

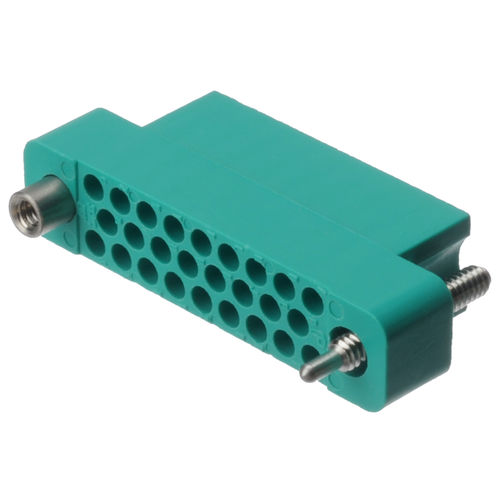

The SGMC series is part of the Mini-Rectangular family of high density connectors for rack & panel applications. SGMC series connectors offer size 22 contacts & wire termination.
High density rectangular connectors with size 22 removable contacts. Industrial performance or MIL-C-28748/13, MIL-C-28748/14, SAE AS39029/34 and SAE AS39029/35. Eleven
connector variants, 4 through 104 contacts. Crimp, solder cup, straight solder and compliant
press-in printed board mount terminations. Thermocouple contact options available.
Catalogs
High Density Rectangular Catalog
43 Pages
