Gravimetric dosing feeder DMS

weightsingle-screwauger

Product overview

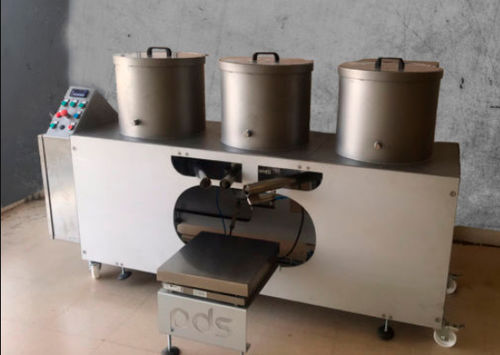

The DMS mobile solid dosing unit is a compact, mobile solution for precise dosing of solid or granulated single-ingredient products to be added to a final recipe. It is intended for processes requiring small-quantity, repeatable additions with traceability and easy cleaning (food-industry compatible design).

Operation
The system integrates a 50 L hopper, screw conveyor and precision weighing scales with an HMI supervision and control unit to automate recipe cycles and adjust dosing parameters per use. All wetted and structural parts are AISI 304 stainless steel; electronic components are sourced from industrial-grade suppliers. The unit is CE machine-safety compliant and can be configured for ATEX where required.

Key components

• 50 L hopper
• Screw conveyor (integrated)
• Precision weighing scales for dosing
• HMI control and supervision system (recipe automation)
• Construction: AISI 304 stainless steel

Advantages

• High dosing precision: DMS dosing system achieves precision ≤ 2 g.
• Recipe automation: HMI control enables programmed cycles, reducing manual errors and ensuring repeatability.
• Quality improvement: Programmable recipes and precise dosing improve product consistency.
• Compliance and safety: CE machine safety compliance; ATEX possible depending on configuration.
• Flexibility: Mobile, compact and modular design for easy transfer between lines and fast disassembly for cleaning and maintenance.

Multimedia
Product page includes multiple product images and a downloadable brochure (PDF) with detailed specifications.

Technical specifications

• Model / series: DMS
• Dimensions (L x W x H): 1,500 mm x 800 mm x 1,000 mm
• Dosing precision: ≤ 2 g
• Hopper capacity: 50 L
• Maximum load: 250 kg
• Power consumption: 0.45 kW
• Construction material: AISI 304 stainless steel (food-grade)
• Integrated elements: screw conveyor, weighing scales, HMI control and supervision
• Compliance: CE machine safety regulations (ATEX optional)
