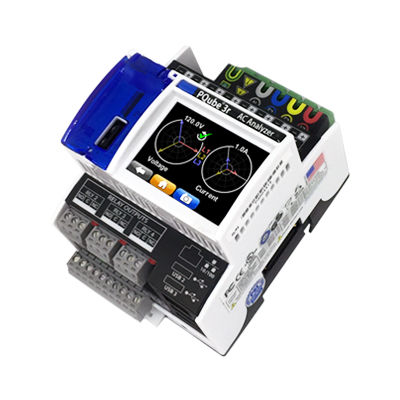

Electric analyzer PQube® 3r

power

Advanced process protection The PQube 3r is your best choice for protecting sensitive processes that require appropriate and specific recovery actions when subject to power disturbances causing abnormal operating conditions. PQube 3r has four built-in relay outputs that can be individually assigned to a specific trigger condition. This permits programming up to four specific control actions associated with the type or severity of disturbances. Application Use when subject to power disturbances causing abnormal operating conditions. Features • 4 built-in relay outputs that can be individually assigned to a specific trigger condition • Programs up to 4 specific control actions associated with the type or severity of disturbance • Computes 4-quadrant ANSI Class 0.2 revenue–grade energy on 8 single-phase channels • Connects directly to voltages up to 690 V • Certified Class A power quality as per IEC 61000-4-30 Ed3 • Monitors DC power and process parameters with 4 additional AC/DC analog channels • Detects and records high-frequency impulses at 4Mhz • Measures and records 2 kHz ~150kHz emissions • Auto-detects the mains frequency, wiring configuration, and nominal voltage • Holds years of data and events using an internal flash memory
