Brushed motor DC22.38 series
DC24 V12 V

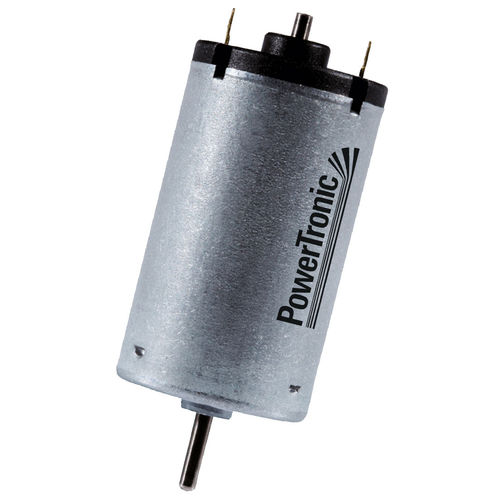

Brushed motor - DC22.38 series - Powertronic Drive Systems GmbH - DC / 24 V / 12 V
Brushed motor - DC22.38 series - Powertronic Drive Systems GmbH - DC / 24 V / 12 V
Add to favorites
Compare this product

Characteristics

Type
brushed, DC
Voltage
24 V, 12 V
Protection class
EMC
Power

1.1 W, 2.5 W, 3.7 W, 4.1 W
(0 hp, 0 hp, 0.01 hp, 0.01 hp)

Torque

0.0025 Nm, 0.0034 Nm, 0.0054 Nm, 0.0059 Nm
(0.001844 ft.lb, 0.002508 ft.lb, 0.003983 ft.lb, 0.004352 ft.lb)

Rotational speed

3,067 rpm, 4,474 rpm, 5,938 rpm, 7,508 rpm
(19,270.5293 rad.min-1, 28,110.9711 rad.min-1, 37,309.5544 rad.min-1, 47,174.1553 rad.min-1)

Diameter

22 mm
(0.87 in)

Description

Additional information Rated Voltage VDC:4,0-30,0 Rated Power W:1,1-4,1 Speed rpm:3.070-7.510 Technical Data Model:08590;12310;16210;19135 Rated Voltage(V):24;24;12;12 No Load Speed(min-1):4000;7500;5200;8500 No Load Current (A):0.038;0.080;0.100;0.150 Rated Speed(min-1):3067;5938;4474;7508 Rated Current(A):0.088;0.254;0.337;0.513 Rated Torque(Ncm):0.34;0.59;0.54;0.52 Rated Power(W):1.1;3.7;2.5;4.1 Efficiency(%):54;62;66;69 Stall Current(A):0.31;1.20;1.55;3.15 Stall Torque(Ncm):1.6;3.5;3.0;3.9 Ambient Temp.: -10 to +60°C | Net Weight max. 50g Options -EMC Filter -Leads -Connector -Special Shaft -Special Voltage -Ball Bearing -Encoder
