Brushed motor DC38.57 series
DC24 V12 V

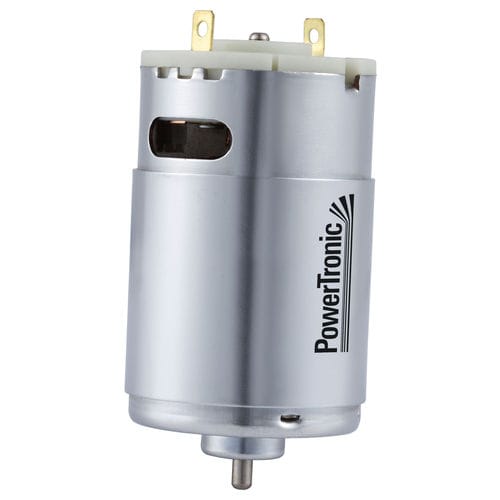

Brushed motor - DC38.57 series - Powertronic Drive Systems GmbH - DC / 24 V / 12 V
Brushed motor - DC38.57 series - Powertronic Drive Systems GmbH - DC / 24 V / 12 V
Add to favorites
Compare this product

Characteristics

Type
brushed, DC
Voltage
24 V, 12 V, 36 V, 6 V
Protection class
EMC
Power

5.4 W, 14.3 W, 14.4 W, 28 W
(0.01 hp, 0.02 hp, 0.02 hp, 0.04 hp)

Torque

0.0153 Nm, 0.0237 Nm, 0.0297 Nm, 0.0426 Nm
(0.011285 ft.lb, 0.01748 ft.lb, 0.021906 ft.lb, 0.03142 ft.lb)

Rotational speed

3,300 rpm, 4,598 rpm, 5,790 rpm, 6,262 rpm
(20,734.5115 rad.min-1, 28,890.086 rad.min-1, 36,379.6429 rad.min-1, 39,345.3064 rad.min-1)

Diameter

36 mm
(1.42 in)

Description

Additional information Rated Voltage VDC:6,0-36,0 Rated Power W:5,4-28,0 Speed rpm:3.300-6.260 Technical Data Model:3545;18130;3732;2682 Rated Voltage(V):12;24;12;24 No Load Speed(min-1):6000;4000;8400;6600 No Load Current (A):0.30;0.09;0.80;0.20 Rated Speed(min-1):4598;3300;6262;5790 Rated Current(A):1.98;0.36;4.28;0.83 Rated Torque(Ncm):2.97;1.53;4.26;2.37 Rated Power(W):14.3;5.4;28.0;14.4 Efficiency(%):60;65;55;73 Stall Current(A):8.82;2.06;16.11;5.62 Stall Torque(Ncm):16.4;11.0;19.6;18.9 Ambient Temp.: -10 to +60°C | Net Weight max. 220g Options -EMC Filter -Leads -Connector -Special Shaft -Special Voltage -Ball Bearing -Encoder
