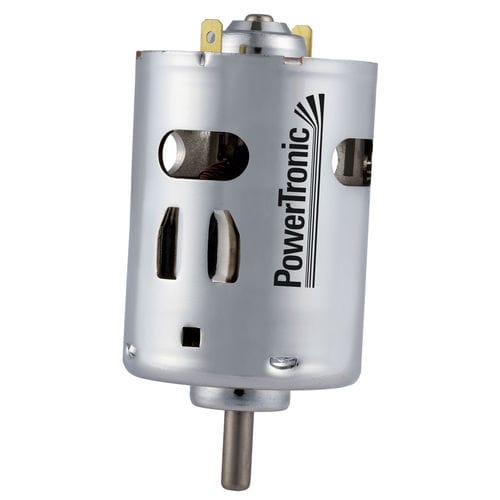

Brushed motor DC52.69 series
DC24 V12 V

Brushed motor - DC52.69 series - Powertronic Drive Systems GmbH - DC / 24 V / 12 V
Brushed motor - DC52.69 series - Powertronic Drive Systems GmbH - DC / 24 V / 12 V
Add to favorites
Compare this product

Characteristics

Type
brushed, DC
Voltage
24 V, 12 V, 6 V
Protection class
EMC
Power

35 W, 102 W, 107 W, 112 W
(0.05 hp, 0.14 hp, 0.15 hp, 0.15 hp)

Torque

0.084 Nm, 0.088 Nm, 0.11 Nm, 0.113 Nm
(0.061955 ft.lb, 0.064905 ft.lb, 0.081132 ft.lb, 0.083345 ft.lb)

Rotational speed

4,000 rpm, 9,000 rpm, 9,700 rpm, 11,100 rpm
(25,132.7412 rad.min-1, 56,548.6678 rad.min-1, 60,946.8975 rad.min-1, 69,743.3569 rad.min-1)

Diameter

52 mm
(2.05 in)

Description

Additional information Rated Voltage VDC:6,0-24,0 Rated Power W:35,0-102,0 Speed rpm:4.000-11.100 Technical Data Model:8010F;8012F;5524F;5025F Rated Voltage(V):12.0;12.0;24.0;12.0 No Load Speed(min-1):13100;10800;11000;5050 No Load Current (A):2.3;2.0;0.95;1.2 Rated Speed(min-1):11100;9000;9700;4000 Rated Current(A):11.9;13.1;6.3;4.8 Rated Torque(Ncm):8.8;11.3;11.0;8.4 Rated Power(W):102;107;112;35 Efficiency(%):72;68;74;63 Stall Current(A):83;80;45;20 Stall Torque(Ncm):67.7;78.7;85.8;41.8 Ambient Temp.: -10 to +60°C | Net Weight max. 480g Options -EMC Filter -Leads -Connector -Special Shaft -Special Voltage -Ball Bearing -Encoder
