Brushed motor DC42 series
DC24 V12 V

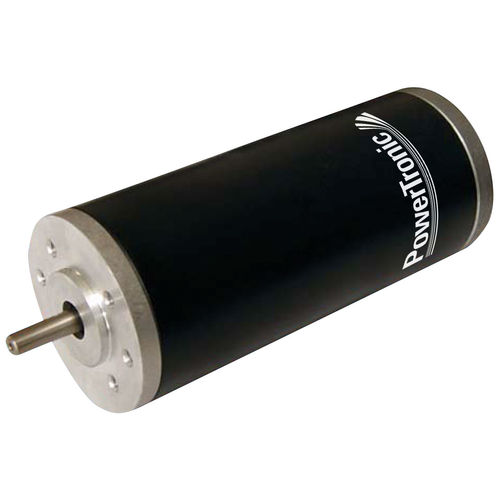

Brushed motor - DC42 series - Powertronic Drive Systems GmbH - DC / 24 V / 12 V
Brushed motor - DC42 series - Powertronic Drive Systems GmbH - DC / 24 V / 12 V
Add to favorites
Compare this product

Characteristics

Type
brushed, DC
Voltage
24 V, 12 V, 380 V
Protection class
EMC
Power

24.5 W
(0.03 hp)

Torque

0.03 Nm, 0.05 Nm, 0.07 Nm
(0.022127 ft.lb, 0.036878 ft.lb, 0.051629 ft.lb)

Rotational speed

Min.: 1,000 rpm
(6,283.1853 rad.min-1)

Max.: 10,000 rpm
(62,831.8531 rad.min-1)

3,350 rpm, 3,480 rpm
(21,048.6708 rad.min-1, 21,865.4849 rad.min-1)

Diameter

42 mm
(1.65 in)

Description

Additional information Rated Voltage VDC:12-230 Rated Power W:up to 24,5 Speed rpm:1000-10.000 Technical Data Model:DC42.80;DC42.90;DC42.100 Rated Voltage (V):24;24;24 No Load Speed (min -1):4000;4000;4000 Rated Torque (Ncm):3;5;7 Rated Speed (min-1):3480;3350;3350 Rated Current (A):0.64;1.1;1.4 Stall Torque (Ncm):22;30;40 Stall Current (A):4.2;5.6;7.5 Rotor Inertia (Kgmm2):11.6;15.4;19.3 Back-EMF (V/min '):5.84;5.84;5.84 Torque Constant (Ncm/A):5.58;5.58;5.58 Résistance (Q):5.8;4.1;3.2 Net Weight (g):300;400;500 Length L1 (mm):80;90;100 Insulation Class B | Ambient Temp.: -10 to +40°C Options -Encoder -Brake -Rear Shaft -Special Shaft -EMC Filter -Special Voltage -Cable -Insulation Class F/H -Connector -Increased Protection
