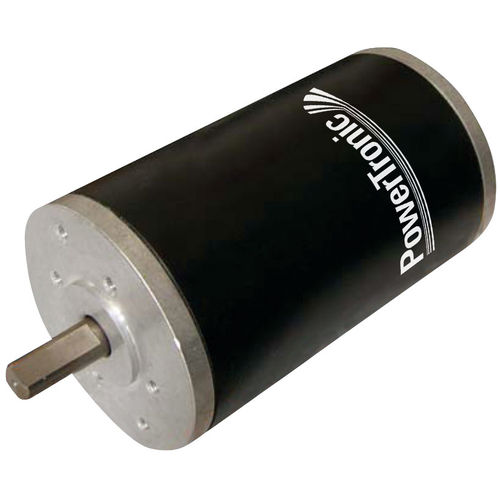

DC motor DC80 seriesbrushed24 VEMC
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V
- Protection class
- EMC
- Power
340 W
(0.462 hp)- Torque
0.11 Nm, 0.5 Nm, 0.82 Nm
(0.0811 ft.lb, 0.3688 ft.lb, 0.6048 ft.lb)- Rotational speed
Max.: 7,000 rpm
(43,982.3 rad.min-1)2,030 rpm, 2,050 rpm, 2,100 rpm
(12,754.87 rad.min-1, 12,880.53 rad.min-1, 13,194.69 rad.min-1)Min.: 1,000 rpm
(6,283.19 rad.min-1)- Diameter
80 mm
(3.15 in)
Description
Additional information
Rated Voltage VDC:24
Rated Power W:up to 340
Speed rpm:1000-7.000
Technical Data
Model:DC80.108;DC80.128;DC80.148
Rated Voltage (V):24;24;24
No Load Speed (min-1):2380;2460;2390
Rated Torque (Ncm):50;82;110
Rated Speed (min-1):2030;2100;2050
Rated Current (A):6.5;10.7;14
Stall Torque (Ncm):340;558;790
Stall Current (A):37.4;63.2;84.6
Rotor Inertia (Kgmm2):420;550;700
Back-EMF (V/min-1):9.8;9.5;9.8
Torque Constant (Ncm/A):9.35;9.06;9.34
Résistance (Q):0.65;0.38;0.28
NetWeight (kg):1.7;2.0;2.3
Length L1 (mm):108;128;148
Insulation Class B | Ambient Temp.: -10 to +40°C
Options
-Encoder
-Brake
-Rear Shaft
-Special Shaft
-EMC Filter
-Special Voltage
-Cable
-Insulation Class F/H
-Connector
-Increased Protection
Catalogs
Product Catalogue DC | BLDC
128 Pages
