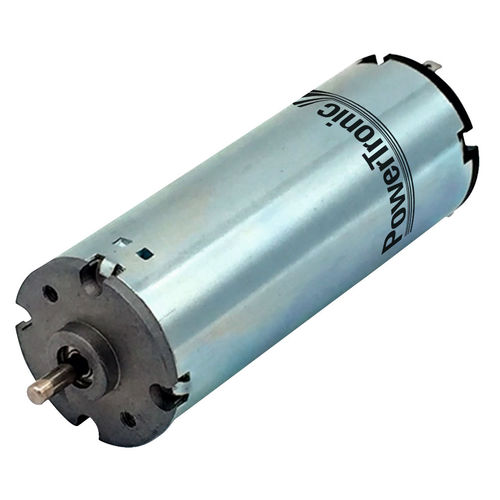

Brushed motor DC31 seriesDC24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 24 V, 12 V
- Protection class
- EMC
- Power
40 W
(0.05 hp)- Torque
0.011 Nm, 0.018 Nm, 0.019 Nm, 0.022 Nm, 0.052 Nm
(0.008113 ft.lb, 0.013276 ft.lb, 0.014014 ft.lb, 0.016226 ft.lb, 0.038353 ft.lb)- Rotational speed
3,180 rpm, 3,508 rpm, 3,640 rpm, 5,275 rpm, 7,090 rpm
(19,980.5293 rad.min-1, 22,041.4141 rad.min-1, 22,870.7945 rad.min-1, 33,143.8025 rad.min-1, 44,547.7838 rad.min-1)Min.: 1,000 rpm
(6,283.1853 rad.min-1)Max.: 10,000 rpm
(62,831.8531 rad.min-1)- Diameter
31 mm
(1.22 in)
Description
Additional information
Rated Voltage VDC:12 / 24
Rated Power W:up to 40
Speed rpm:1.000-10.000
Technical Data
Model:DC31.51-4020;DC31.51-15132;DC31.61-3036;DC31.75-2165;DC31.75-2840
Rated Voltage (V):12;24;12;24;24
No Load Speed (min-1):5950;3800;3950;4250;8100
Rated Torque (Ncm):1.8;1.1;2.2;1.9;5.2
Rated Speed (min-1):5275;3180;3508;3640;7090
Rated Current (A):1.1;0.22;0.87;0.42;2.11
Stall Torque (Ncm):15.5;6.6;19.35;13;41.8
Stall Current (A):8.55;1.1;6.92;2.5;14.8
Net Weight (g):151;151;175;203;203
Length L1 (mm):51;51;61;75.4;75.4
Insulation Class B | Ambient Temp.: -10 to +40°C
Options
-Encoder
-EMC Filter
-Connector
-Special Shaft
-Insulation Class F/H
-Rear Shaft
-Cable
-Brake
-Special Voltage
-Increased Protection
