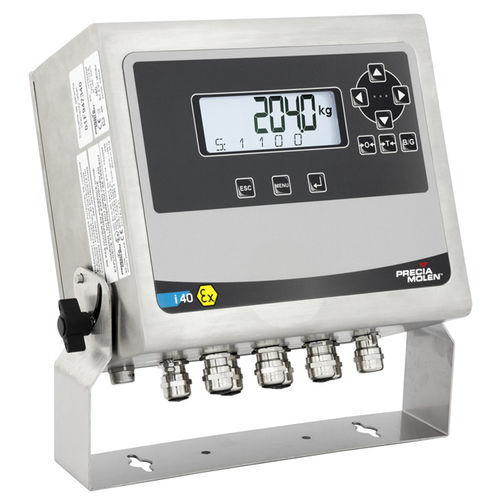

Wall-mount weight indicator i40

rack-mountpanel-mountexplosion-proof

Overview
The i40 industrial indicator is designed for process weighing and for integration into industrial systems requiring accurate weight measurement. It supports multiple connectivity options for direct communication with most PLCs and industrial PCs, and is available in several enclosures for field mounting, control-cabinet installation or control-panel integration. Ex (explosive-atmosphere) versions are available.

Applications

• Process weighing
• Tank and container weighing
• Dosing (loading/unloading) when used with the EDU application

Key features

• Multiple connectivity options for direct connection to PLCs and PCs
• Several enclosure options for field mounting, control cabinet installation or control panel integration
• Available for explosive atmospheres (Ex)
• Extensible with dedicated software applications for dosing and continuous bulk-flow measurement

Associated Software

• i40 EDU (Process Weighing): adds management of a simple dosing process for loading or unloading to the i40 indicator.
• i40 BS (Continuous Weighing): enables continuous measurement of bulk product flow without capacity limits.

Options and variants

• ATEX / Ex versions available (suitable for explosive atmospheres)

Technical specifications

• Model: i40
• Product family: Process weighing indicator
• Main use: integration into industrial processes for weight measurement (tank/container/process weighing)
• Connectivity: multiple options to connect directly to most industrial PLCs and PCs
• Enclosures: versions for installation in the work environment, in a control cabinet, or on a control panel
• Explosive certification: Ex 2-21 IECEx; compliant with Directive 94/9/EC (ATEX). Marking example: II3G Ex nA IIC T4/T6* Gc; II3D Ex tc IIIC T85°C Dc
• Software options: i40 EDU (dosing processes); i40 BS (continuous bulk-flow measurement)
• Brand: PRECIA MOLEN
• Price, EAN and downloadable product documents are not provided on the scraped page
